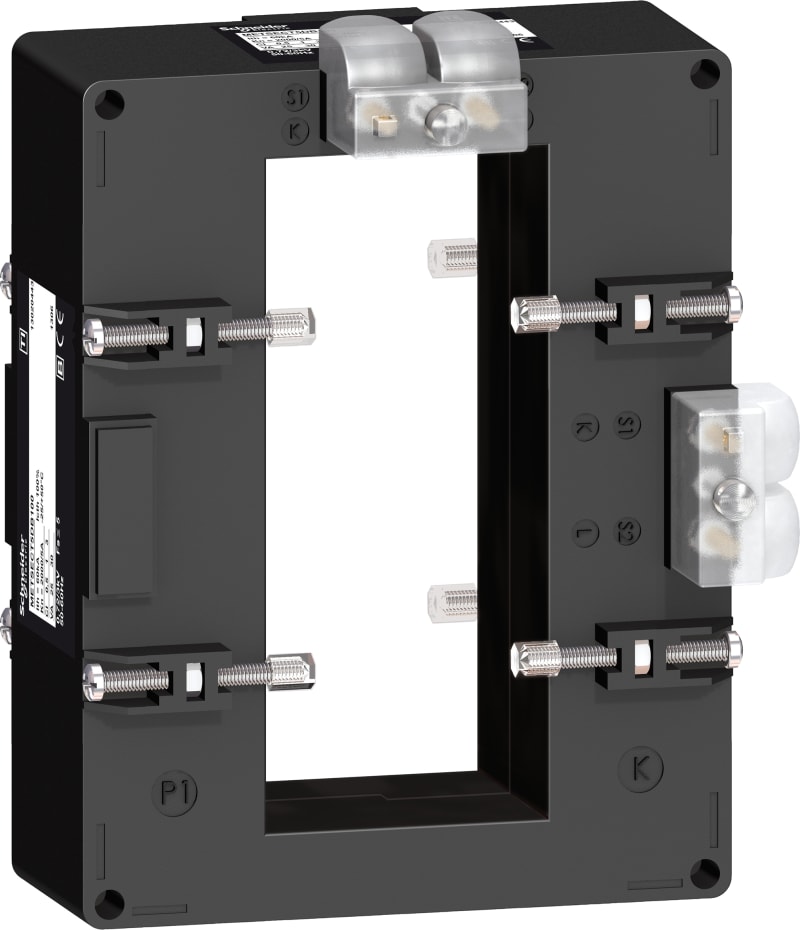

Current Transformer 3000/5 Rail 52X127

Schneider Electric METSECT5DC300 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5DC300

EAN / GTIN

3303431123797

Sales unit

pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 30 VA; Class 1 at 50 VA

[In] rated current

3000 A

Current transformer type

Tropicalised for busbar; Solid core

Current transformer ratio

3000/5

[Ith] conventional free air thermal current

60 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV

mounting mode

Insulated locking screw

Mounting support

Busbar

Width

Outside: 125 mm; Inner: 54 mm

Height

Outside: 160 mm; Inner: 127 mm

Depth

Frame : 40 mm; Total : 87 mm

Product weight

1.097 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Opening of bars

54 x 127

Sealing

With

Standards

IEC 61869-2; VDE 0414

Product certifications

EAC; CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…50 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.600 cm

Package 1 Width

13.500 cm

Package 1 Length

17.100 cm

Package 1 Weight

1.199 kg

Unit Type of Package 2

S03

Number of Units in Package 2

10

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

12.394 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

3000 A

Rated secondary current

5 A

Rated secondary apparent power

50 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

128 mm

Width opening

55 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
