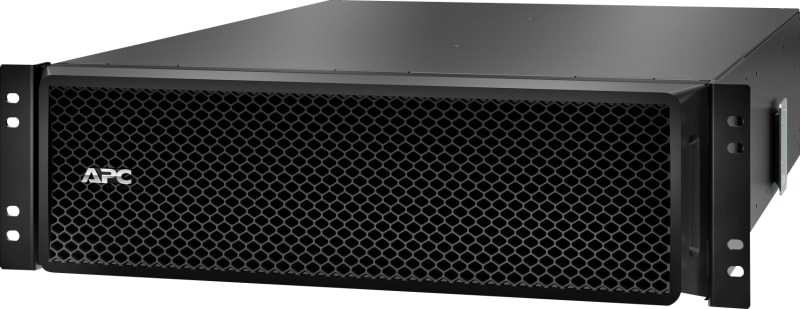

Schneider Electric APC Smart-UPS On-Line SRT External Battery Pack, 3U Rack, 192VDC SRT192RMBP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT192RMBP APC -UPS SRT 192V, Battery pack for 5/6kVA, Rack.
Technical Specifications
- Manufacturer part number (MPN)
- SRT192RMBP
- EAN / GTIN
- 0731304301776
- Sales unit
- pcs
- Product or component type
- External battery pack
- Number of rack unit
- 3U
- battery type
- Lead-acid battery
- Provided equipment
- Installation guide; Warranty card; Rack mounting brackets
- Range of product
- Smart-UPS Battery Systems
- Replacement battery
- APCRBC140
- Number of battery free slots
- 0
- Number of battery filled slots
- 0
- Device mounting
- Stand alone battery stack
- Battery voltage
- 192 V
- Number of battery replacement quantity
- 2
- Colour
- Black
- Height
- 130 mm
- Width
- 432 mm
- Depth
- 682.7 mm
- Product weight
- 91 kg
- mounting mode
- Rack-mounted
- Two post mountable
- 1
- Battery capacity
- 10 Ah
- Standards
- OSHPD
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...10000 ft
- Relative humidity
- 0…95 % non-condensing
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Storage Relative Humidity
- 0…95 % non-condensing
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 43.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 98.000 cm
- Package 1 Weight
- 223.500 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 2
- Package 2 Height
- 57.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 460.000 kg
- Country of origin
- VN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8507.60
Cross References
- EAN 0731304301776
- SAP 1000653540
- Code 8464150
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric backplane extension cable M340 - 0.8 m BMXXBC008K
Schneider Electric
DIN-rail terminal mini 4mm² blue 2P
NSYTRV42MBL
Schneider Electric
Schneider Electric Easy UPS 1 Ph On-Line, 2000VA, Tower, 230V, 4X IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime SRVS2KIL
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, from 15 charging stations in static to 50 charging stations in dynamic EVLMSESS2EDM
Schneider Electric
Schneider Electric Connection transfer assembly, PrismaSeT P, NSX630, 4P, horizontal fixed, with toggle, in duct LVS04456
Schneider Electric
Schneider Electric Modicon TM3 2 Analogue Outputs Spring Terminal 24 VDC
TM3AQ2G
Schneider Electric

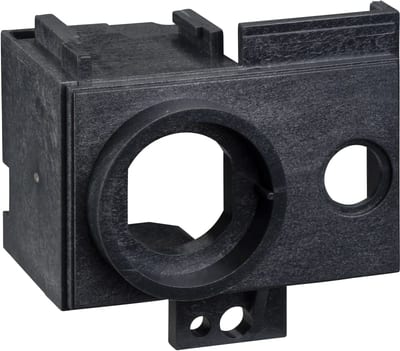

Castell Lock Mounting Set for MTZ3
LV847518SP
Schneider Electric

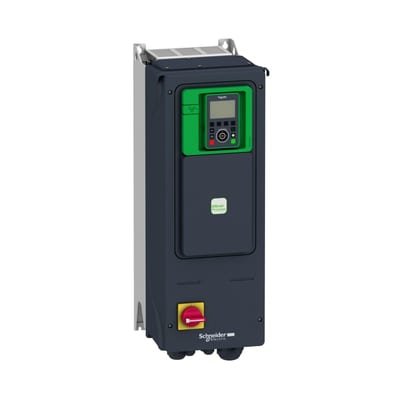

Schneider Electric variable speed drive ATV650 - 3kW - 380...480V - IP55 - disconnect switch ATV650U30N4E
