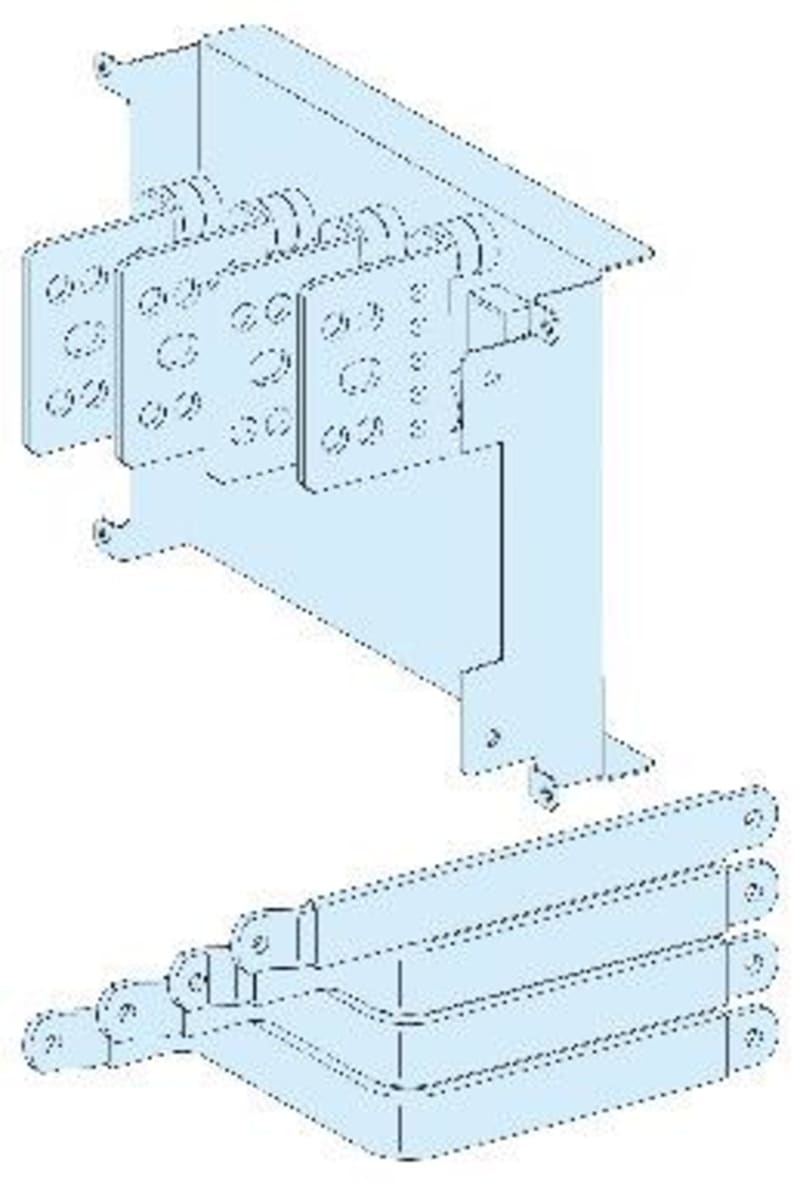

Schneider Electric Connection transfer assembly, PrismaSeT P, NSX630, 4P, horizontal fixed, with toggle, in duct LVS04456
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04456 Connection for cable compartment for fast-horizontal mounted NSX400-630 4P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04456
- EAN / GTIN
- 3606481867667
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection transfer assembly
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- flat busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 32 x 6 mm
- Height
- 250 mm
- Product weight
- 7.18 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 4P 1 direct 5
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867667
- SAP 1200547121
- Code 82879299
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modicon TM3 2 Analogue Outputs Spring Terminal 24 VDC
TM3AQ2G
Schneider Electric
Castell Lock Mounting Set for MTZ3
LV847518SP
Schneider Electric
Schneider Electric variable speed drive ATV650 - 3kW - 380...480V - IP55 - disconnect switch ATV650U30N4E
Schneider Electric
Schneider Electric A9F94240 ACTI9 IC60L Miniature Circuit Breaker 2P 40 A, Curve C
Schneider Electric
Schneider Electric single foot switch - IP55 - without cover - plastic - yellow - 1 NC + 1 NO XPEY110
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 50A 3P - with EverLink GV4L50B
Schneider Electric
WALL-Mount Cabinet WITH WINDOW. 5X4X2
NSYS3D5420T
Schneider Electric
Plinth 200 B501AP-IV
FFS06710620
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS04456?
- LVS04456 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS04456.
- What is the HS code for LVS04456?
- The customs tariff (HS) code for LVS04456 is 8544.42.
- Who manufactures LVS04456?
- LVS04456 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LVS04456?
- Yes — the LVS04456 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS04456?
- The minimum order quantity is 1.
- Is LVS04456 available?
- Yes — LVS04456 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
