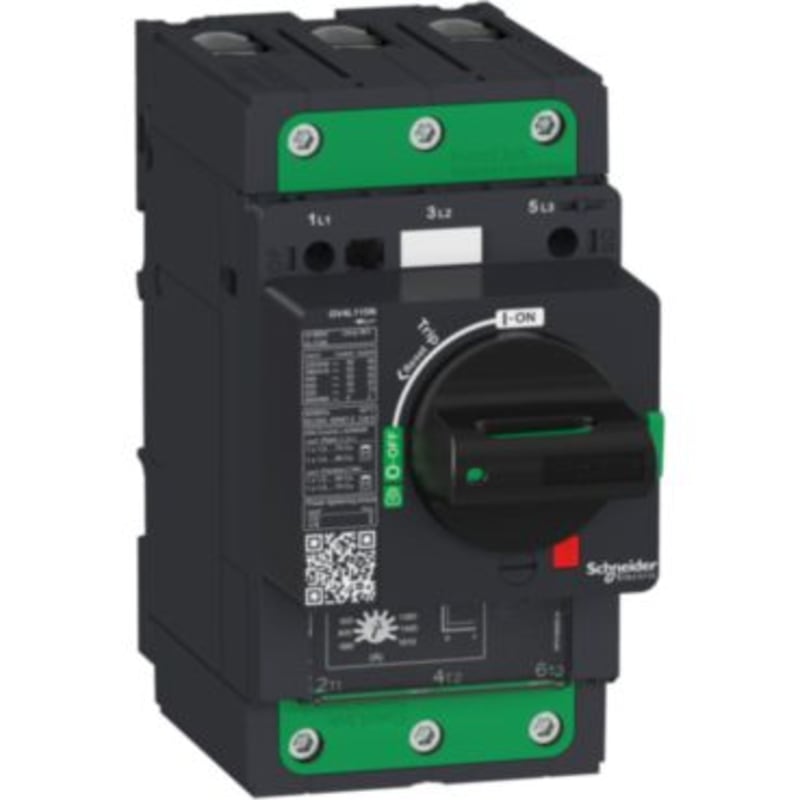

Schneider Electric TeSys GV4 - magnetic circuit breaker - 50A 3P - with EverLink GV4L50B
Part numberGV4L50BEAN / GTIN3606481309488HS code8536.90
Electrical Components
Motor Protection Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GV4L50B Motor protection circuit breaker GV4L Magnetic 50A 25kA Elink.
Technical Specifications
- Manufacturer part number (MPN)
- GV4L50B
- EAN / GTIN
- 3606481309488
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated current
- 50 A
- Range
- TeSys Deca
- Range of product
- TeSys GV4
- Device short name
- GV4L
- Product name
- TeSys GV4
- Product or component type
- Motor circuit breaker
- Device application
- Motor protection
- Trip unit technology
- Magnetic; Electronic
- Poles description
- 3P
- Utilisation category
- Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1
- Operating position
- Any position
- Motor power kW
- 11 kW at 400...415 V AC 50/60 Hz; 15 kW at 500 V AC 50/60 Hz; 18.5 kW at 660...690 V AC 50/60 Hz; 15 kW at 400...415 V AC 50/60 Hz; 18.5 kW at 400...415 V AC 50/60 Hz; 22 kW at 400...415 V AC 50/60 Hz; 18.5 kW at 500 V AC 50/60 Hz; 22 kW at 500 V AC 50/60 Hz; 30 kW at 500 V AC 50/60 Hz; 22 kW at 660...690 V AC 50/60 Hz; 30 kW at 660...690 V AC 50/60 Hz; 37 kW at 660...690 V AC 50/60 Hz; 45 kW at 660...690 V AC 50/60 Hz
- Breaking capacity
- 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
- Control type
- Rotary handle
- [In] rated current
- 50 A
- Magnetic tripping current
- 300…700 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-2
- [Ith] conventional free air thermal current
- 115 A conforming to IEC 60947-4-1
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- Power dissipation per pole
- 6.1 W
- Mechanical durability
- 40000 cycles
- Electrical durability
- 5000 cycles for AC-3 at 415 V opening; 5000 cycles for AC-3 at 415 V closing
- maximum operating rate
- 25 cyc/h
- Rated duty
- Continuous conforming to IEC 60947-4-1
- Connections - terminals
- EverLink BTR screw connectors (top): 1 cable(s) 1.5…70 mm² - solid; EverLink BTR screw connectors (top): 1 cable(s) 1.5…50 mm² - flexible; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…95 mm² - solid; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…70 mm² - flexible
- Tightening torque
- 9 N.m for cable 16…95 mm²; 5 N.m for cable 1.5…10 mm²
- Mechanical robustness
- Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6; Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6; Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
- Height
- 155 mm
- Width
- 81 mm
- Depth
- 165 mm
- Product weight
- 1.65 kg
- Colour
- Grey (RAL 7016)
- Suitability for isolation
- Yes conforming to IEC 60947-1
- Standards
- EN/IEC 60947-2; EN/IEC 60947-4-1
- Product certifications
- IEC; CCC; EAC; EU-RO MR
- Climatic withstand
- conforming to IACS E10
- IK degree of protection
- IK07 conforming to IEC 62262
- Pollution degree
- 3
- IP degree of protection
- IP40 conforming to IEC 60529
- Ambient air temperature for storage
- -50…85 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-11
- Operating altitude
- 5000 m
- Ambient air temperature for operation
- -25…70 °C
- Country of origin
- PL
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481309488
- SAP 1200216133
- Code 82207315
