WALL-Mount Cabinet WITH WINDOW. 5X5X2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D5520T Wall-mount cabinet With Window. 5X5X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D5520T
- EAN / GTIN
- 3606480159374
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 500 mm
- Enclosure nominal width
- 500 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; cUL; UL; BV; GL
- Product weight
- 10.9 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25.000 cm
- Package 1 Width
- 51.500 cm
- Package 1 Length
- 52.000 cm
- Package 1 Weight
- 10.888 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 24
- Package 2 Height
- 169.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 274.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 500 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159374
- SAP 1000089610
- Code 8914864
Product Documentation
More from Schneider Electric
Schneider Electric
SWM Pole Mount W300 (NSYSFPSC30)
Schneider Electric
Schneider Electric APC Smart-UPS On-Line SRT External Battery Pack, 3U Rack, 192VDC SRT192RMBP
Schneider Electric
Schneider Electric backplane extension cable M340 - 0.8 m BMXXBC008K
Schneider Electric
DIN-rail terminal mini 4mm² blue 2P
NSYTRV42MBL
Schneider Electric

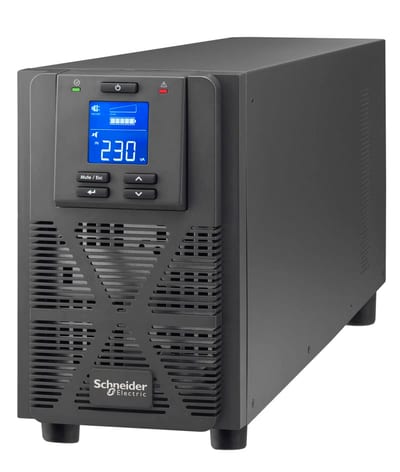

Schneider Electric Easy UPS 1 Ph On-Line, 2000VA, Tower, 230V, 4X IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime SRVS2KIL
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, from 15 charging stations in static to 50 charging stations in dynamic EVLMSESS2EDM
Schneider Electric

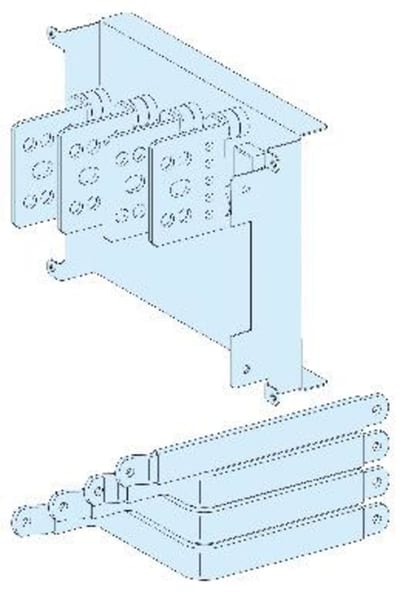

Schneider Electric Connection transfer assembly, PrismaSeT P, NSX630, 4P, horizontal fixed, with toggle, in duct LVS04456
Schneider Electric

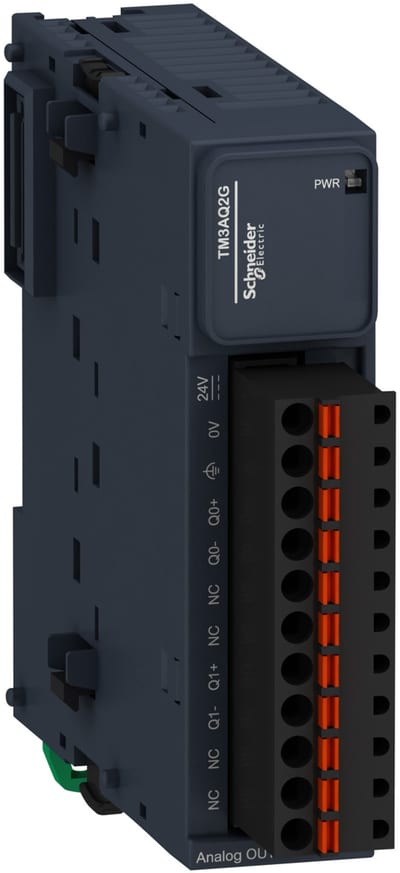

Schneider Electric Modicon TM3 2 Analogue Outputs Spring Terminal 24 VDC
