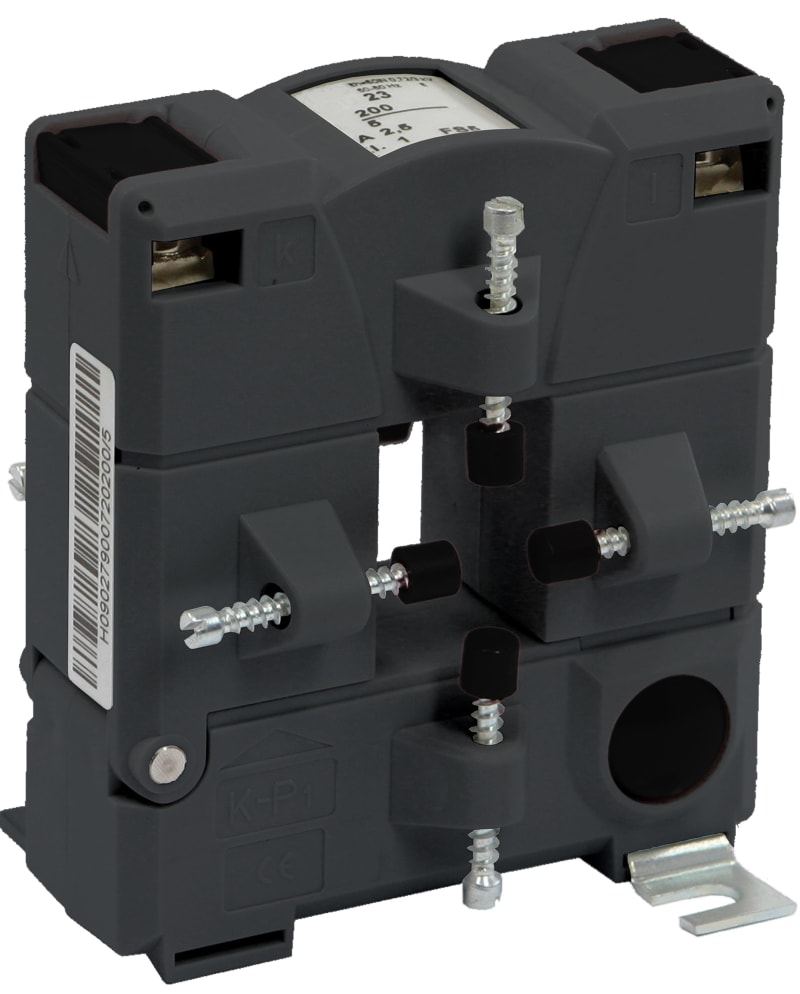

Divisible current transformer GD060 600/5A

Schneider Electric METSECT5GD060 CT Split Core Busbar 600/5A 2.5VA cl.0.5 for rail 55x85mm.

Manufacturer part number (MPN)

METSECT5GD060

EAN / GTIN

3606489607890

Sales unit

pcs

Package quantity

8 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 2.5 VA

[In] rated current

600 A

Current transformer type

Standard for busbar; Split core

Current transformer ratio

600/5

[Ith] conventional free air thermal current

600 A

Maximum safety factor

5

Permissible current

36000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

By screws

Mounting support

DIN rail; Fastened onto a surface with screws

Width

Outside: 125 mm; Inner: 55 mm

Height

Outside: 158.15 mm; Inner: 85 mm

Depth

58 mm

Electrical insulation class

Class E

Opening of bars

55 x 85

Standards

VDE 0414; DIN 42600-2; DIN EN 61869-1; DIN EN 61869-2

Ambient air temperature for operation

-5…40 °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

600 A

Rated secondary current

5 A

Rated secondary apparent power

2.5 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

85 mm

Width opening

55 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

Country of origin

Hungary

HS Code

8504.31
