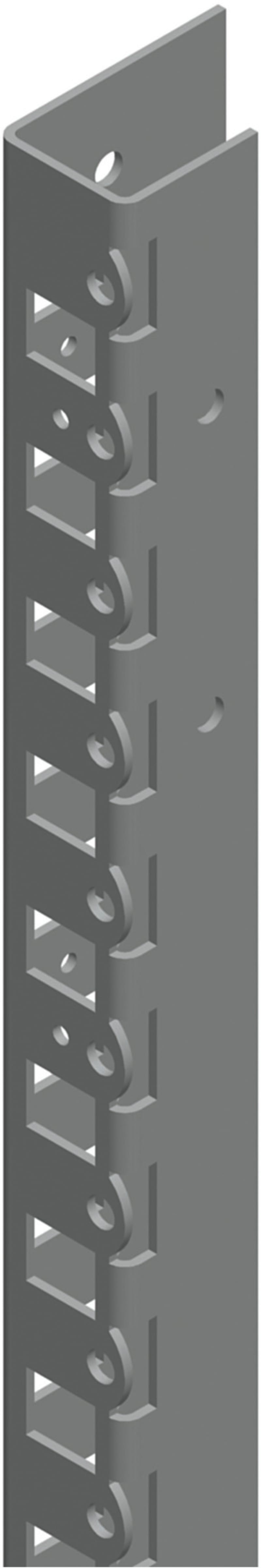

Schneider Electric PanelSeT SM vertical adaptation profiles - 1600 mm NSYSMVR16
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMVR16 2 vertical profiles 1600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMVR16
- EAN / GTIN
- 3606480146640
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Adaptation profile
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SM
- Mounting location
- Front and rear of enclosure
- Installation direction
- Vertical
- Device composition
- fixing screws; 2 profile
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws - on screws of hinges and latches location
- Height
- Nominal: 1600 mm; Real: 1506 mm
- Width
- 42 mm
- Depth
- 24.5 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 4.500 cm
- Package 1 Length
- 151.000 cm
- Package 1 Weight
- 2.494 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 100
- Package 2 Height
- 48.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 273.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of height units
- 32
- Model
- Metric
- Surface finishing
- Powder coating
- Length
- 1600 mm
- Mounting method
- Screw mounting
- Profile height busbar
- 42 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146640
- SAP 1000317637
- Code 8342584
