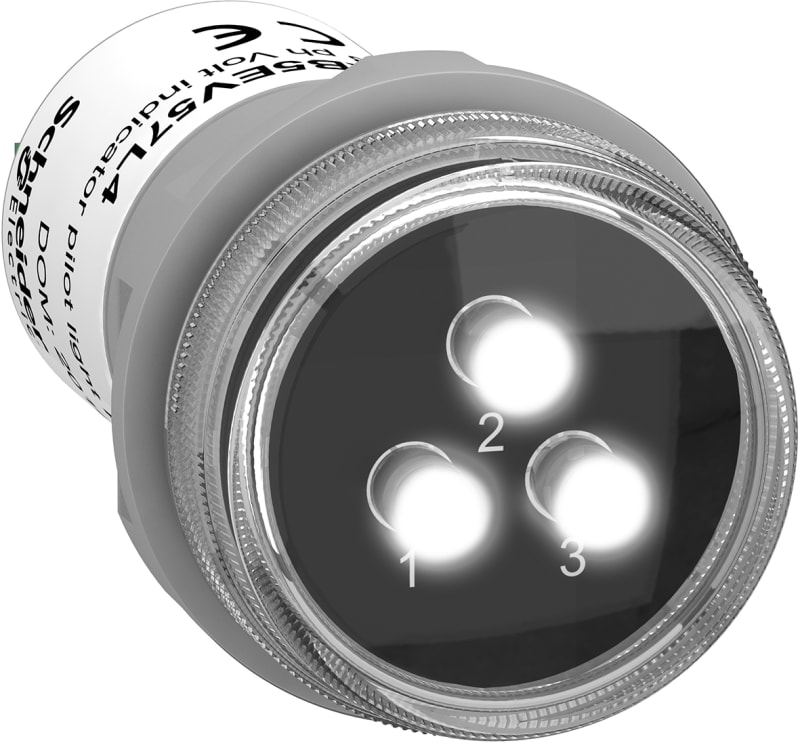

Schneider Electric Monolithic pilot light, Harmony XB5, 3 phases Voltage, indicator with 3 LED, white, 400V AC XB5EV57L4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB5EV57L4 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp for Ø30 mm hole 3-phase 3x400VAC+N White LED.
Technical Specifications
- Manufacturer part number (MPN)
- XB5EV57L4
- EAN / GTIN
- 3606481194190
- HS code
- 8539.52
- Sales unit
- pcs
- Range of product
- Harmony XB5
- Product or component type
- Monolithic pilot light
- Device short name
- XB5
- Bezel material
- Plastic
- Fixing collar material
- Plastic
- Mounting diameter
- 30.5 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Clear
- Light source
- Protected LED
- Bulb base
- Integral LED
- Light source colour
- White
- Network number of phases
- 3 phases
- Device presentation
- Monolithic product
- Height
- 65.5 mm
- Width
- 36 mm
- Depth
- 77 mm
- Product weight
- 0.065 kg
- Connections - terminals
- Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 1 kV conforming to IEC 61000-4-5
- Compatibility code
- XB5
- Supply voltage limits
- 450 V AC
- Current consumption
- 5...8 mA
- Service life
- 100000 h at rated voltage and 25 °C
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -30…70 °C
- IP degree of protection
- IP67 (front face); IP20 (back face)
- IK degree of protection
- IK10 conforming to IEC 50102
- Standards
- IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1
- Resistance to fast transients
- 2 kV conforming to IEC 61000-4-4
- Resistance to electromagnetic fields
- 10 V/m conforming to IEC 61000-4-3
- Electromagnetic compatibility
- Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 40
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3606481194190
- SAP 1000793503
- Code 81410660
Product Documentation
