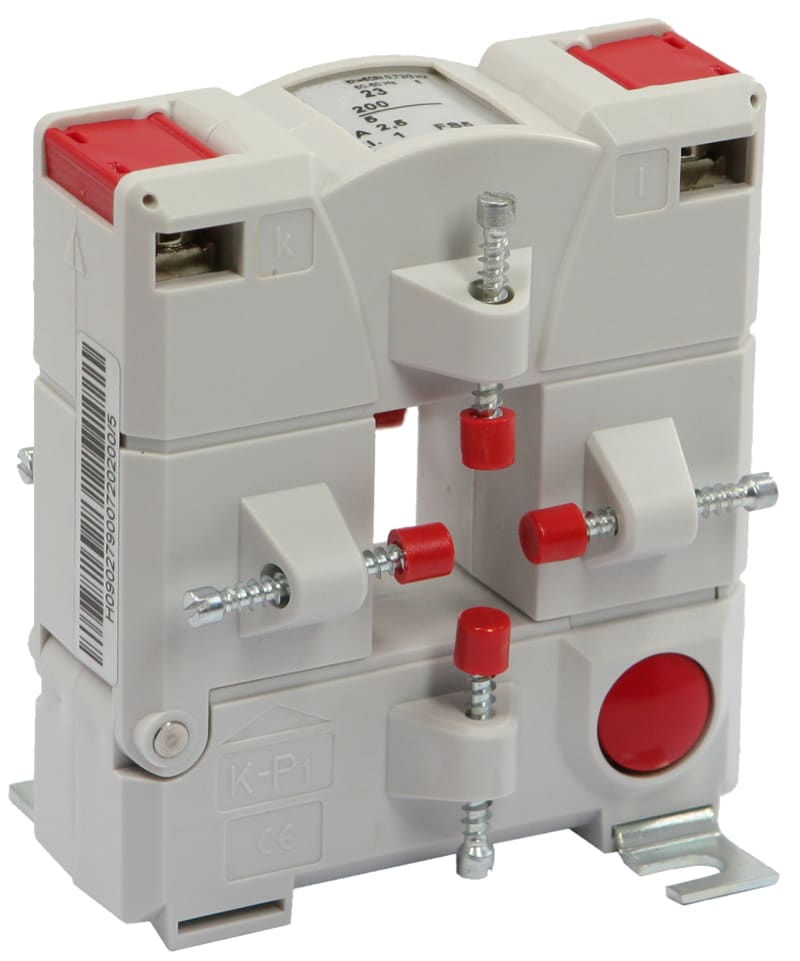

Divisible current transformer GA040 400/5A

Schneider Electric METSECT5GA040 CT Split Core Busbar 400/5A 1VA cl.0.5 for rail 23x33mm.

Manufacturer part number (MPN)

METSECT5GA040

EAN / GTIN

3606489607845

Sales unit

pcs

Package quantity

24 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 1 VA

[In] rated current

400 A

Current transformer type

Standard for busbar; Split core

Current transformer ratio

400/5

[Ith] conventional free air thermal current

400 A

Maximum safety factor

5

Permissible current

24000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

By screws

Mounting support

DIN rail; Fastened onto a surface with screws

Width

Outside: 93 mm; Inner: 23 mm

Height

Outside: 106.15 mm; Inner: 33 mm

Depth

58 mm

Electrical insulation class

Class E

Opening of bars

23 x 33

Standards

VDE 0414; DIN 42600-2; DIN EN 61869-1; DIN EN 61869-2

Ambient air temperature for operation

-5…40 °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

24

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

400 A

Rated secondary current

5 A

Rated secondary apparent power

1 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

33 mm

Width opening

23 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

Country of origin

Hungary

HS Code

8504.31
