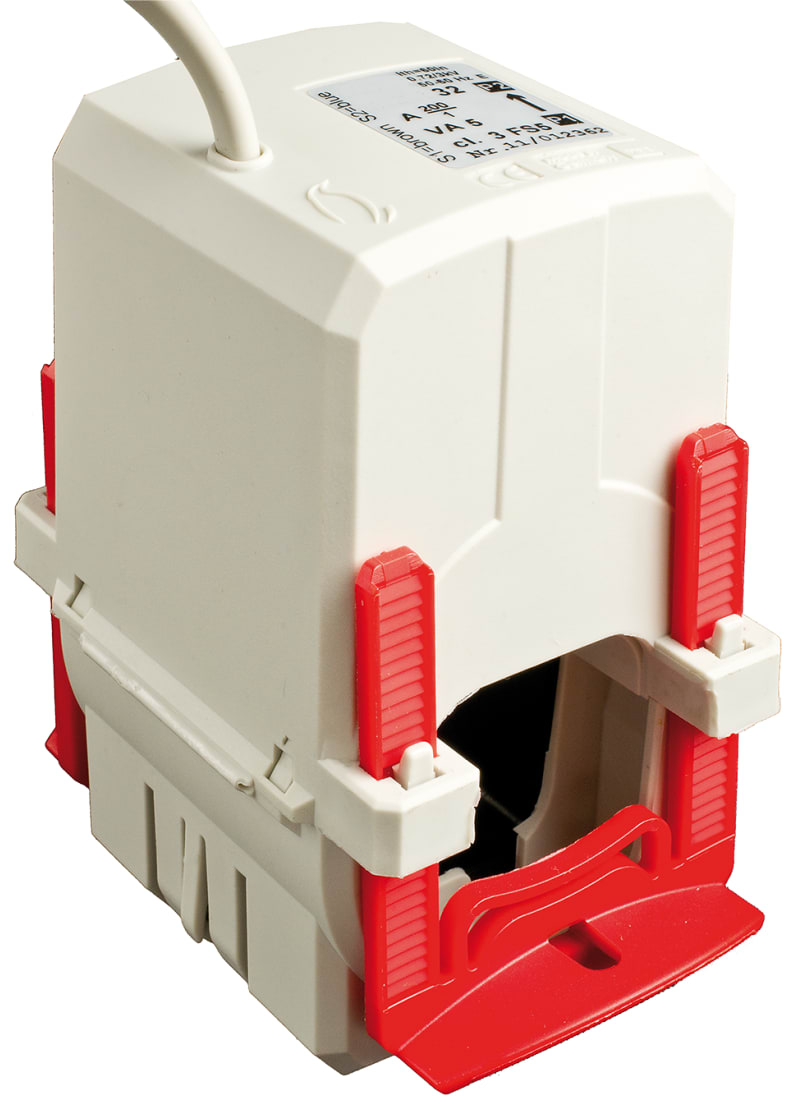

Divisible currenttraf HP100 1000/5A

Schneider Electric METSECT5HP100 Split Core CT Cable 1000/5A 5VA cl.1 for cable Ø=45mm.

Manufacturer part number (MPN)

METSECT5HP100

EAN / GTIN

3606489608507

HS code

8544.42

Sales unit

pcs

Package quantity

12 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 1 at 5 VA

[In] rated current

1000 A

Current transformer type

Standard for cable; Split core

Current transformer ratio

1000/5

[Ith] conventional free air thermal current

1200 A

Maximum safety factor

5

Permissible current

60000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Clip-on

Width

Outside: 72.2 mm

Height

Outside: 120.6 mm

Depth

98.1 mm

Diameter

44 mm inner:

Electrical insulation class

Class E

Cable outer diameter

44 mm

Connections - terminals

Cable 2 cable(s) 0.5…1.5 mm² 0.5 m

Standards

DIN EN 60044-1; DIN EN 61869-1; DIN EN 61869-2; VDE 0414

Ambient air temperature for operation

-5…50 °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

HS Code

8544.42

• EAN 3606489608507
• SAP 1200361099
• Code 82368201
