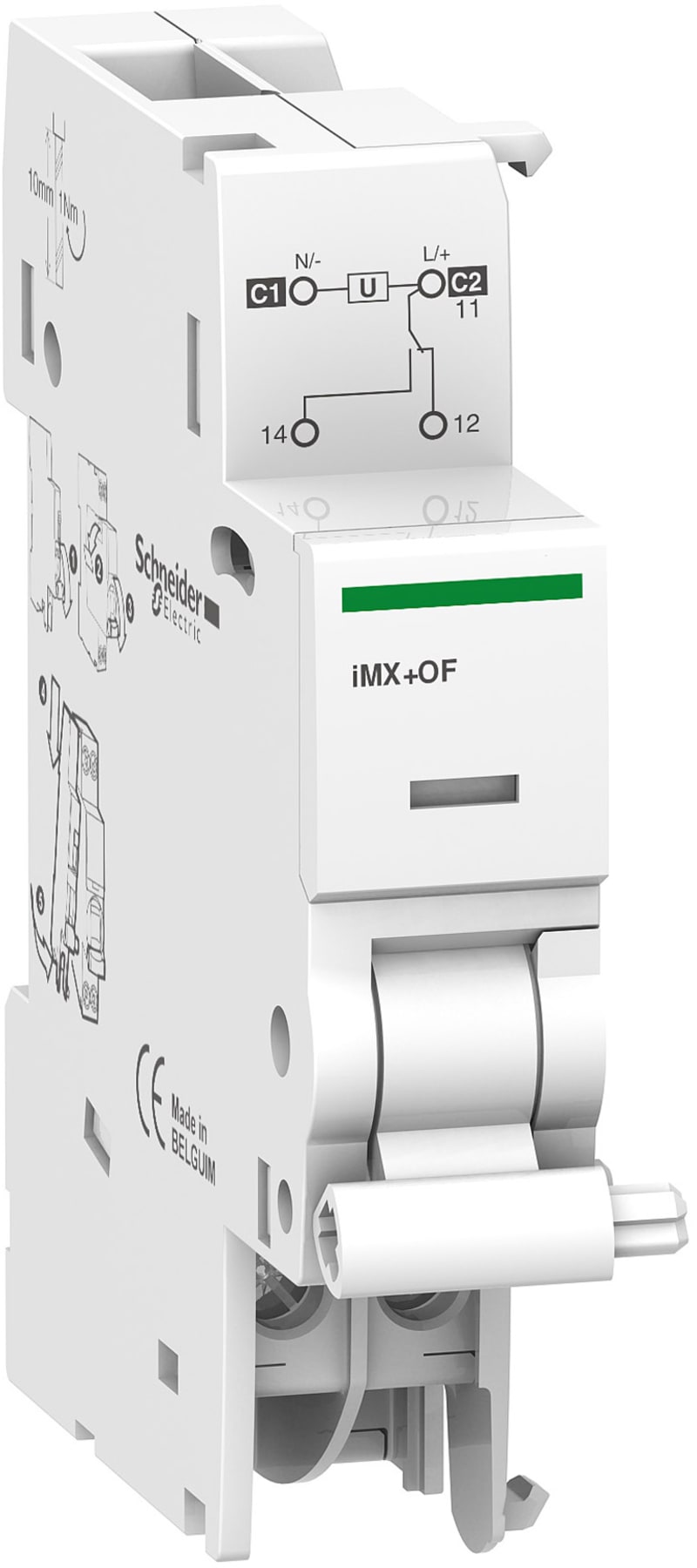

Schneider Electric Acti9 A9A26947 Shunt Trip Release iMX+OF, 48 V AC/DC

Schneider Electric A9A26947 is an Acti9 shunt trip release (iMX+OF) with 48 V AC/DC control voltage and one integrated changeover auxiliary contact for the iC60 range of miniature circuit-breakers. The device provides remote tripping of the associated breaker, mounts on DIN rail at 18 mm width, and offers signalling via the auxiliary contact. Typical applications include remote emergency shutdown and integration with control systems in distribution boards.

Manufacturer part number (MPN)

A9A26947

EAN / GTIN

3606480087967

Sales unit

pcs

Package quantity

8 pcs

range of product

Acti9

Product or component type

Shunt trip release with OC contact

Device short name

iMX+OF

Signal contacts composition

1 C/O

[In] rated current

AC-12 2 A at 48 V, AC 50 Hz; DC-12 2 A at 48 V, DC

[Uc] control circuit voltage

48 V AC 50/60 Hz; 48 V DC

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 1 cable(s) 5 mm² - rigid; Clamp terminal - 2 cable(s) 2.4 mm² - rigid; Clamp terminal - 1 cable(s) 3 mm² - flexible; Clamp terminal - 2 cable(s) 2.4 mm² - flexible with cable end

Tightening torque

1 N.m

Standards

EN/IEC 60947-1; EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.800 cm

Package 1 Width

8.000 cm

Package 1 Length

9.400 cm

Package 1 Weight

80.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

8

Package 2 Height

8.500 cm

Package 2 Width

10.000 cm

Package 2 Length

26.500 cm

Package 2 Weight

703.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

72

Package 3 Height

30 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

6.742 kg

Country of origin

BE

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC/DC

Rated voltage

48 V

Installed at the factory

No

Width in number of modular spacings

1

Rated switch current

6 A

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.30
