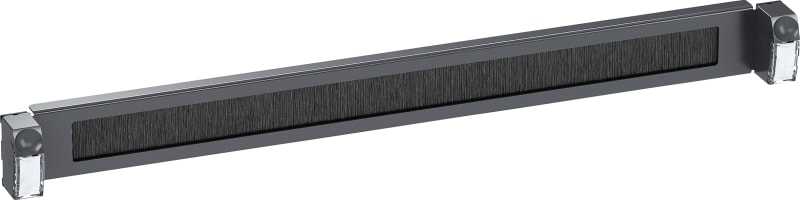

Schneider Electric Actassi 19-inch 1U Horizontal Brush Cable Guide Panel

The Schneider Electric VDIG188201 is an Actassi 1U 19-inch cable-management panel with horizontal brush entry for patch-cord routing. It is supplied with two quick-fix 19-inch mountings and a brush strip that maintains organisation while allowing free cable movement into the rack. Typical applications include structured cabling frames in data centres, telecom rooms, and enterprise MDF/IDF cabinets.

Manufacturer part number (MPN)

VDIG188201

EAN / GTIN

3606480542534

Sales unit

pcs

Package quantity

11 pcs

Range

Actassi

product

19” patchcord brush panel

colour

Light grey (RAL 7035); Dark grey (RAL 7016)

Provided equipment

2 quick fix 19" mountings; 1 brush for patch cords

rack unit

1U

Material

Metal sheet: DC01; Plastic part: PA66 GF20; Plastic part: PC; Brush peels: PA (polyamide)

Width

0.48 m; 484 mm

Height

0.044 m; 44 mm

Depth

0.040 m; 40 mm

Product weight

0.3 kg; 0.3000 kg

Ambient air temperature for operation

-10…55 °C; -10…55 °C

Standards

IEC 60297; NF C 20-150

Number of Units in Package 1

1

Number of Units in Package 2

11

Warranty (in months)

18

Number of height units

1

Mounting direction

Horizontal

Country of origin

France

HS Code

7326.90

• EAN 3606480542534
• SAP 1000341011
• Code 8990504
