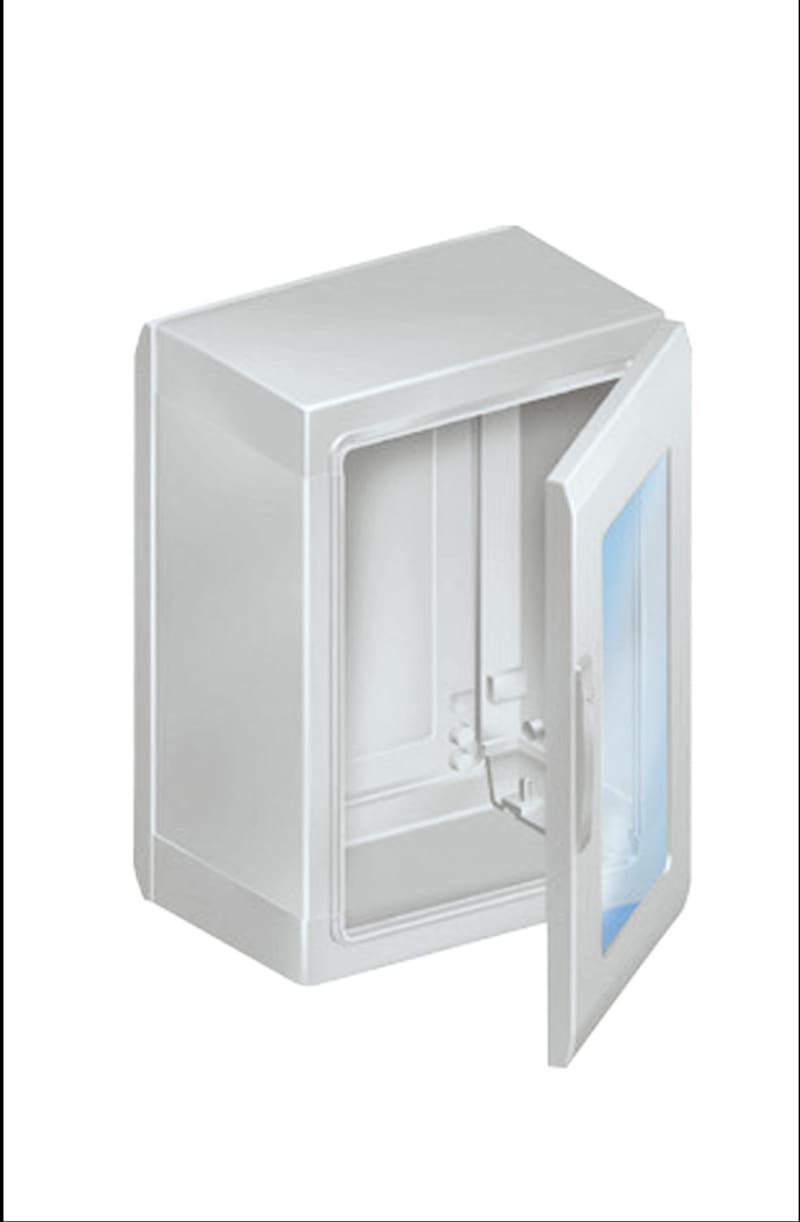

Schneider Electric Floor standing encl. polyester vers.PLA compl.sealed 1000X500X320 IP65 glazed NSYPLA1053TG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLA1053TG THALASSA 7035 1000x500x320 IP65 gl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLA1053TG
- EAN / GTIN
- 3606480774447
- Sales unit
- pcs
- Dimensions
- 1000×500×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLA
- Nominal height
- 1000 mm
- Nominal width
- 500 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door
- Body type
- Sealed top and bottom part assembled with side parts
- Door type
- Transparent front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 4 points lock, 5 mm double-bar
- Accessibility for operation
- Rear; Front
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL 508 A
- NEMA degree of protection
- NEMA 3S; NEMA 3; NEMA 12; NEMA 13; NEMA 5; NEMA 2; NEMA 3X; NEMA 1; NEMA 3R
- Product certifications
- DNV Marine; UL/cUL listed; Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP65 conforming to IEC 60529 (completely sealed)
- IK degree of protection
- IK08 conforming to IEC 62262 (glazed door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 101.000 cm
- Package 1 Width
- 53.500 cm
- Package 1 Length
- 38.000 cm
- Package 1 Weight
- 24.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 5
- Package 2 Height
- 116.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 137.500 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 1000 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK08
- Degree of protection (IP)
- IP65
- Suitable for outdoor set-up
- Yes
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480774447
- SAP 1000752414
- Code 8489311
