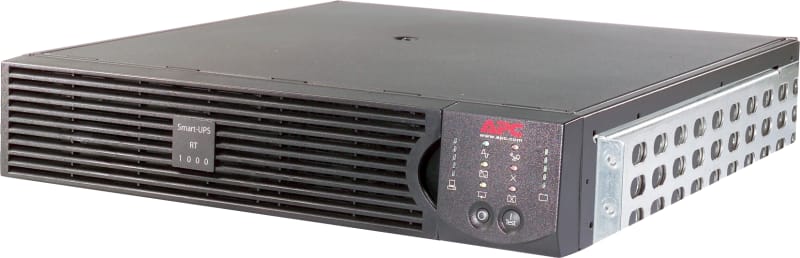

Schneider Electric APC Smart-UPS RT 1000VA 230V - Marine SURT1000XLIM
Part numberSURT1000XLIMEAN / GTIN0731304283515HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SURT1000XLIM APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- SURT1000XLIM
- EAN / GTIN
- 0731304283515
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High availability, ruggedized power protection for shipboard and other transportation applications.
- Main Input Voltage
- 230 V
- Product or component type
- Uninterruptible power supply (UPS)
- Other Input Voltage
- 220 V; 240 V
- Main Output Voltage
- 230 V
- Other Output Voltage
- 220 V; 240 V
- Rated power in W
- 700 W
- rated power in VA
- 1000 VA
- Input Connection Type
- IEC 60320 C14
- output connection type
- 6 IEC 60320; 2 IEC Jumpers
- Number of rack unit
- 2U
- Cable length
- 2.5 m
- Number of cables
- 1
- Provided equipment
- CD with software; Relay board; Smart UPS signalling RS-232 cable; User manual
- Replacement battery
- RBC31
- Run Time
- View Runtime Graph
- battery type
- Lead-acid battery
- Extended runtime
- 1
- Number of battery filled slots
- 1
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charger power
- 109 W rated
- Number of power module
- 700
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Variant option
- Shipboard
- UPS type
- On-Line
- Colour
- Black
- Height
- 432 mm
- Width
- 85 mm
- Depth
- 483 mm
- Product weight
- 23 kg
- Mounting location
- Front
- Mounting preference
- Lower
- mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- No
- Input Power Factor at Full Load
- 1
- Input voltage limits
- 180...280 V
- Network frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Bypass type
- Built-in bypass
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 3 %
- Maximum configurable power in VA
- 1000 VA
- Maximum configurable power in W
- 700 W
- Wave type
- Its wave
- Efficiency
- 88 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains; 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised; 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Product certifications
- CE; DNV; KCC
- Standards
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Acoustic level
- 55 dBA
- Heat dissipation
- 324 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…55 °C
- Ambient air temperature for storage
- -20…50 °C
- Storage altitude
- 0…15240 m
- IP degree of protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage Relative Humidity
- 0…95 % non-condensing
- Emergency power off
- Optional
- Free slots
- 0
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 420 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 28.6 cm
- Package 1 Width
- 63 cm
- Package 1 Length
- 59.4 cm
- Package 1 Weight
- 27.8 kg
- Country of origin
- PH
- Warranty (in months)
- 24
