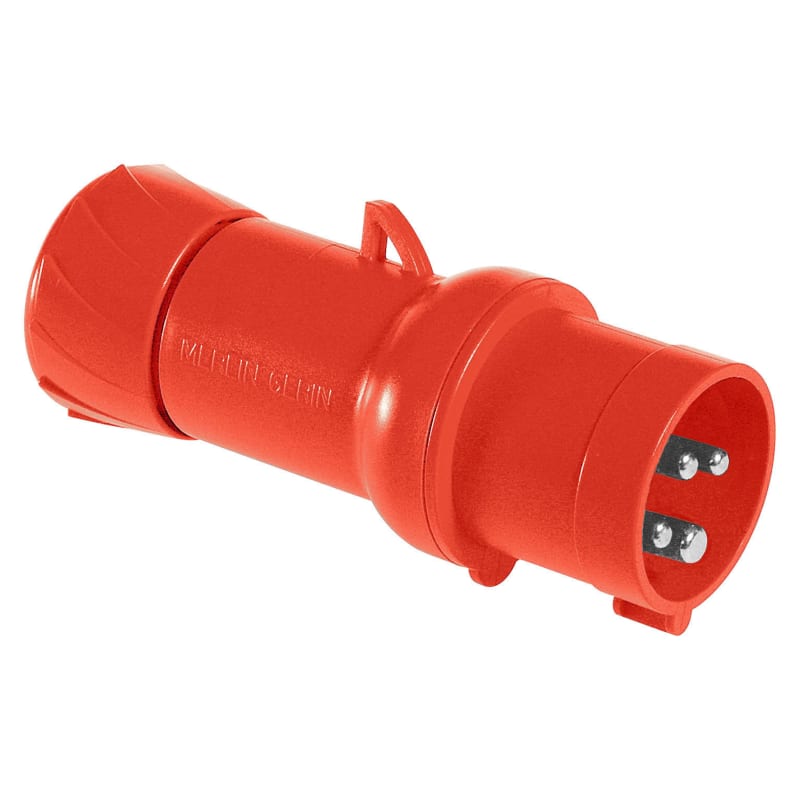

Schneider Electric PratiKa wander plug - straight - 32 A - 3P + E - 380...415 V AC - IP44 PKX32M434
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKX32M434 PratiKa plug - straight - 32 A - 3P + E - 380.415 V AC - IP44.
Technical Specifications
- Manufacturer part number (MPN)
- PKX32M434
- EAN / GTIN
- 3303432009472
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Voltage
- 400 V
- IP rating
- IP44
- Rated current
- 32 A
- Range
- Mureva
- Product or component type
- Wander plug
- Device short name
- Mureva plug
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- Plug, socket, control station shape
- Straight
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 2.5…6 mm²
- Cable outer diameter
- 11.5…21 mm
- cable entry
- Fair lead; Cable gland
- Thread type
- Pg 21
- Product weight
- 0.236 kg
- Height
- 152 mm
- Width
- 76 mm
- Depth
- 76 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
- Number of poles
- 4
- Material
- Plastic
- Surface treatment contacts
- Nickel-plated
- IEC-amperage
- 32 A
- Connection system
- Screwless terminal
- Insert direction
- Straight
- Phase inverter
- No
- Contact material
- CuZn
- Degree of protection (IP)
- IP44
- Military model
- No
- Clock hour position
- 6 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303432009472
- SAP 1200197939
- Code 82139737
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 3 poles, MicroLogic 5.2E trip unit 100A C10R35E100
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLA compl.sealed 1000X500X320 IP65 glazed NSYPLA1053TG
Schneider Electric
Schneider Electric LRD332L TeSys Thermal Overload Relay 23-32 A Class 20
Schneider Electric
Wall-Mounted Appliance Inlet,63A 4PJ 400V IP67
81883
Schneider Electric
Schneider Electric Power, Accessory, NetBotz, Universal 24VDC Output AP9505I
Schneider Electric
Changeover Switch, INS250 100A 4P
31141
Schneider Electric
RXM relay with plinth 12A 230VAC (RXM2AB2P7PVS)
Schneider Electric

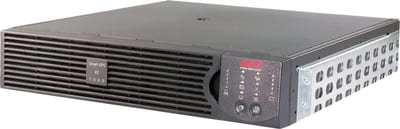

Schneider Electric APC Smart-UPS RT 1000VA 230V - Marine SURT1000XLIM
