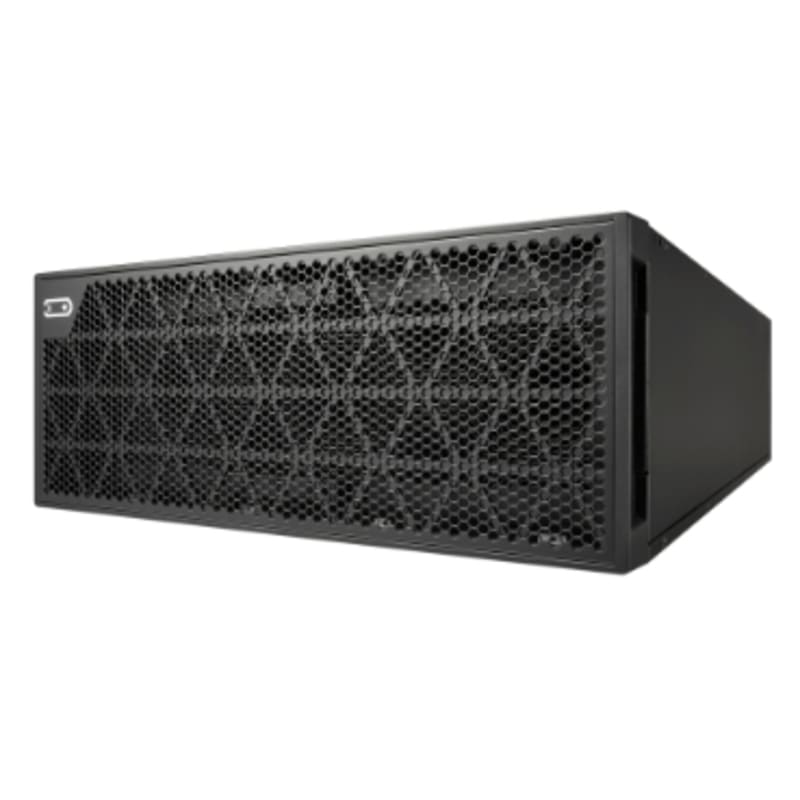

Schneider Electric APC Smart-UPS RT Battery Pack 192V, rackmount, 4U SRTG192XLBP2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRTG192XLBP2 APC -UPS SRTG Battery Pack 15/20kVA, 192V 9A rack/tower.
Technical Specifications
- Manufacturer part number (MPN)
- SRTG192XLBP2
- EAN / GTIN
- 0731304411987
- Sales unit
- pcs
- Product or component type
- External battery pack
- Number of rack unit
- 4U
- battery type
- Lead-acid battery
- Provided equipment
- Installation guide; Warranty card
- Range of product
- Smart-UPS Battery Systems
- Replacement battery
- APCRBC172
- Device mounting
- Stand alone battery stack; Rack mount
- Number of battery filled slots
- 4
- Number of battery free slots
- 0
- Number of battery replacement quantity
- 2
- Battery voltage
- 192 V
- Colour
- Black
- Height
- 175 mm
- Width
- 440 mm
- Depth
- 700 mm
- Product weight
- 116 kg
- mounting mode
- Rack-mounted
- USB compatible
- No
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...6600 ft
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 29.5 cm
- Package 1 Width
- 79 cm
- Package 1 Length
- 59 cm
- Package 1 Weight
- 122.4 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 192 V
- Weight
- 116000 g
- Size indication
- Block
- Capacity
- 9000 mAh
- Plastic housing
- No
- Length
- 700 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 175 mm
- Battery pack
- No
- Number of cells
- 4
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304411987
- SAP 1200723284
- Code 83845743
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys D - suppressor module - varistor - 110...250 V AC LA4DE2U
Schneider Electric

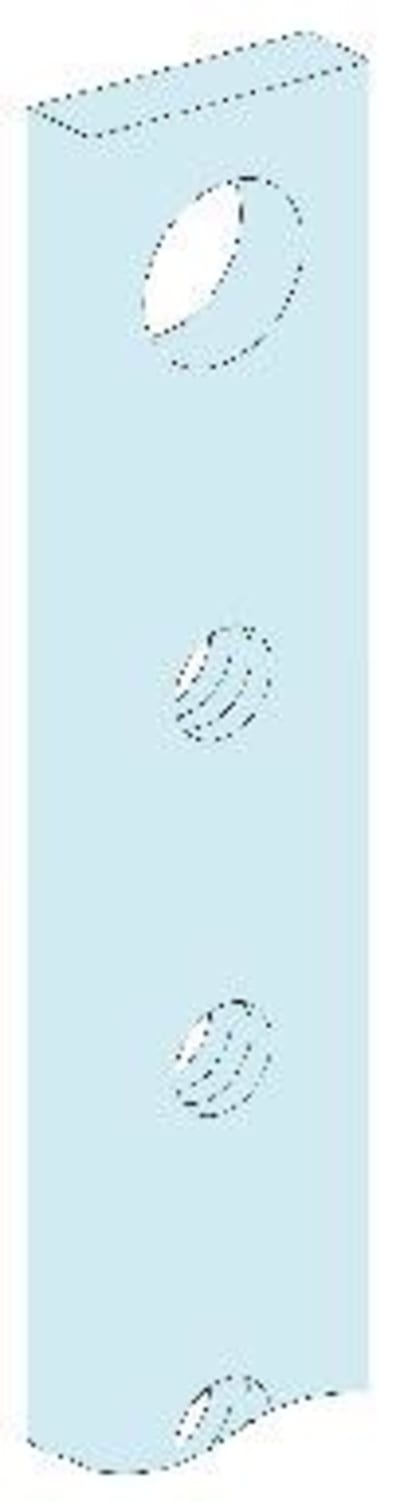

Busbar 250A L1000 G/P
LVS04162
Schneider Electric
Schneider Electric Straight length, Canalis KBB, 40 A, 2 circuits L+N+PE, 5 tap-off units, 3 m, white KBB40ED22305W
Schneider Electric

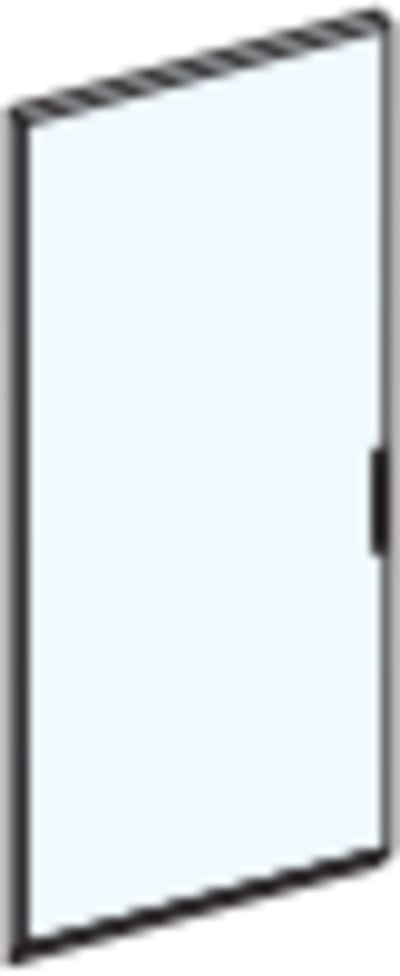

Door for PrismaSeT G CABINET-IP55-11MOD B600
LVS08323
Schneider Electric

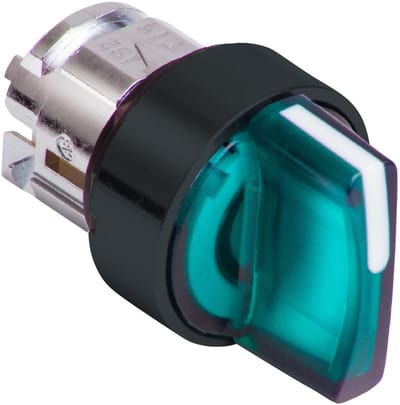

Selector switch with LIGHT 3POS.RET.V Green
ZB5AK1733
Schneider Electric

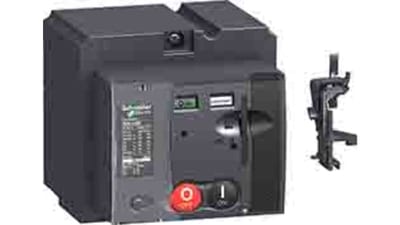

Schneider Electric standard motor mechanism module MT250, ComPact NSX250, 48/60 VDC LV431544
Schneider Electric

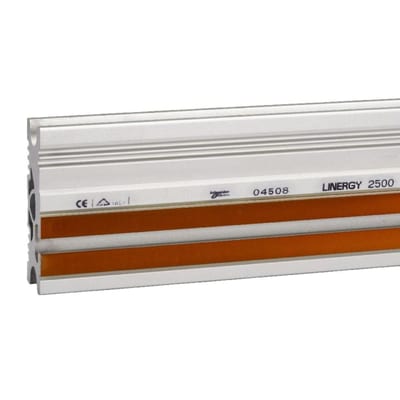

Busbar-vertical-Linergy-LGYE 2500A (LVS04508)
Schneider Electric

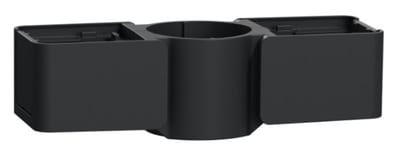

Module Double End Piece Branch Rod and Pole Anthracite
