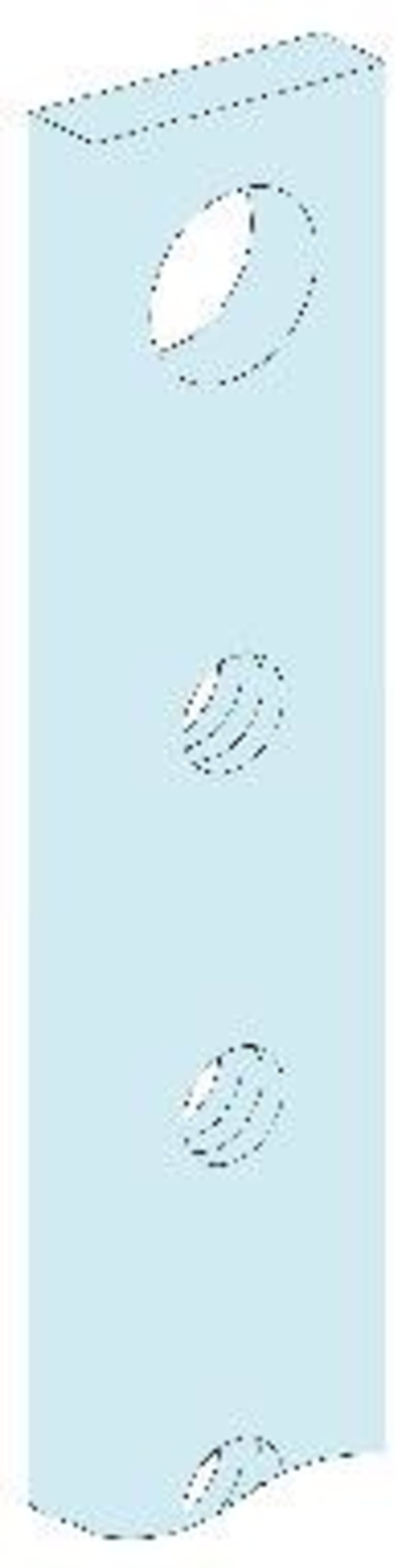

Busbar 250A L1000 G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04162 Busbar-Linergy BS BB-trailing edge 250A -4 pcs-length 1000mm- PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04162
- EAN / GTIN
- 3606481870254
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 250 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Busbar description
- Flat bar
- Quantity per set
- Set of 4
- Installation direction
- Vertical, operating position: rear
- installation description
- Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- [Ie] rated operational current
- 250 A at 35 °C
- [Icw] rated short-time withstand current
- 13 kA (1 s) for 2 supports
- [Ipk] rated peak withstand current
- 40 kA
- Busbar cross section
- 20 x 5 mm
- Length
- 1000 mm
- Width
- 20 mm
- Depth
- 5 mm
- Product weight
- 3.52 kg
- Colour
- Natural
- Type of busbar connection
- M6 threaded hole
- Connection pitch
- Connection each 25 mm
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 5 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 250 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870254
- SAP 1200547053
- Code 82879058
