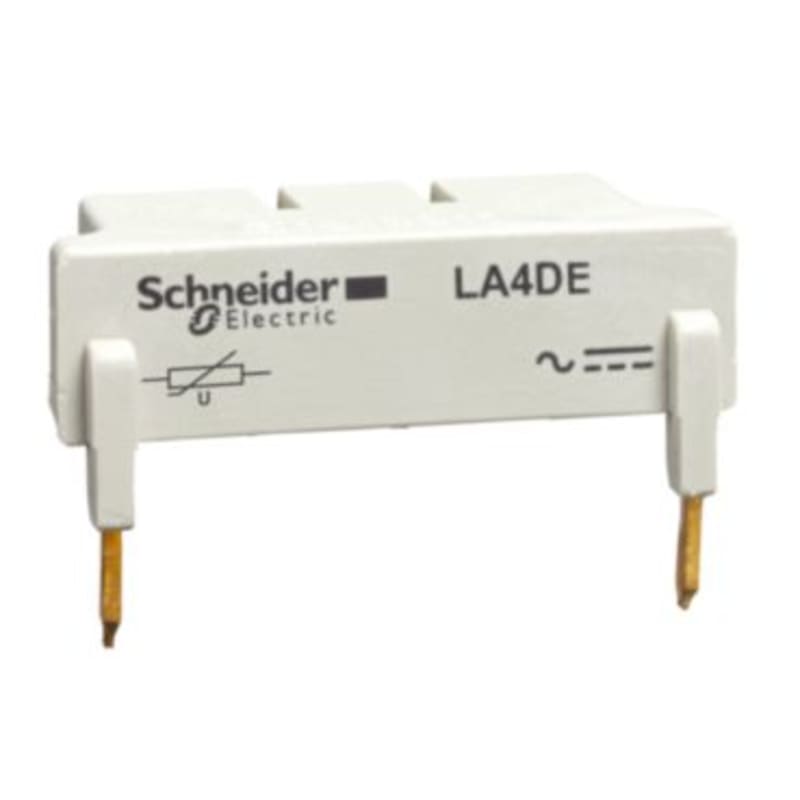

Schneider Electric TeSys D - suppressor module - varistor - 110...250 V AC LA4DE2U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA4DE2U Varistor 110-250V LC1 D80-D115.
Technical Specifications
- Manufacturer part number (MPN)
- LA4DE2U
- EAN / GTIN
- 3389110233124
- Sales unit
- pcs
- Package quantity
- 78 pcs
- Voltage
- 110-250 V
- Range
- TeSys
- Device short name
- LA4D
- Product or component type
- Suppressor module
- Product compatibility
- 4P LC1D80...D115; 3P LC1D80...D115
- Mounting location
- Top
- mounting mode
- By screws
- Suppressor technology
- Varistor (peak limiting)
- [Uc] control circuit voltage
- 110...250 V AC
- Maximum peak voltage
- 2 Uc
- Product weight
- 0.018 kg
- Standards
- IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 78
- Country of origin
- BG
- Warranty (in months)
- 18
- Function
- Varistor (voltage-sensitive resistor)
- Rated control supply voltage AC 50 Hz
- 110–250 V
- Rated control supply voltage AC 60 Hz
- 110–250 V
- Voltage type (operating voltage)
- AC
- With LED indication
- No
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110233124
- SAP 1000254007
- Code 81142659
Product Documentation
