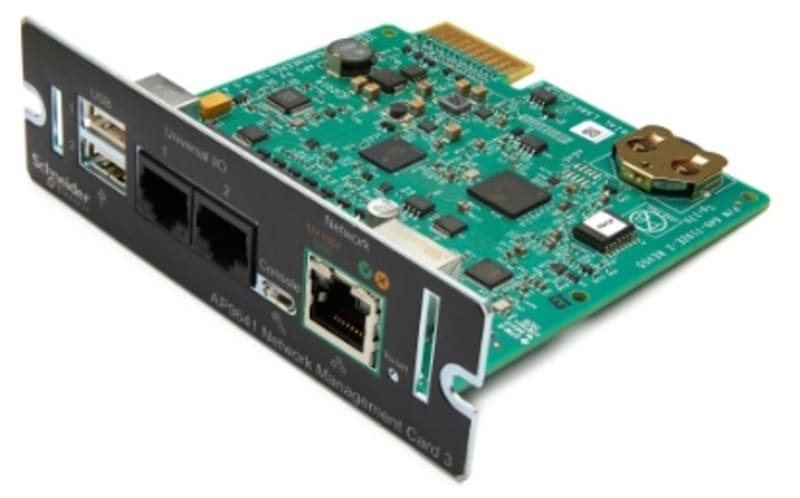

Schneider Electric Network Management Card 3 (NMC3) with Environmental Monitoring, secure remote UPS monitoring and management AP9641

APC UPS Nettverkskort with environmental monitoring.

Manufacturer part number (MPN)

AP9641

EAN / GTIN

0731304355540

Sales unit

pcs

Range of product

Network Management Cards

Range compatibility

Galaxy VM; Galaxy VX; Symmetra PX; Easy UPS 3M Advanced; Easy UPS 3-Phase Modular; Galaxy PX; Galaxy 3L Pro; Smart-UPS; Smart-UPS Ultra; Smart-UPS Online; Smart-UPS Modular Ultra; Smart-UPS Battery Systems; Back-UPS SX3; Refurbished Smart-UPS

Product or component type

Device monitoring and management

Provided equipment

Temperature sensor; Micro-USB cable; Installation manual

Number of input phases

1; 3

Standards

EN 55024; BS EN 55024; EN 61000-4-2; BS EN 61000-4-2; EN 61000-4-3; BS EN 61000-4-3; EN 61000-4-4; BS EN 61000-4-4; EN 61000-4-5; BS EN 61000-4-5; EN 61000-4-6; BS EN 61000-4-6; EN 61000-4-8; BS EN 61000-4-8; EN 61000-4-11; BS EN 61000-4-11; EN 55035; BS EN 55035; EN 62040-2; BS EN 62040-2; EN 61326-2; BS EN 61326-2; ICES-003 class A; VCCI class A; EN 61000-6-3; BS EN 61000-6-3; EN 55032:class A; BS EN 55032:class A

Variant option

Environmental monitoring

Product weight

0.09 kg

Width

12.1 cm

Height

3.8 cm

Depth

11.4 cm

Product certifications

FCC Class A; AS/NZS; AS/NZS 3548 (C-Tick) class A; FCC part 15 class A; GOST; UK PSTI

Storage Relative Humidity

0…95 %

Relative humidity

0…95 %

Ambient air temperature for storage

-15…65 °C

Ambient air temperature for operation

-5…45 °C

Storage altitude

0…15240 m

Operating altitude

0...10000 ft

Communication network type

10/100/1000BASE-T

Authentication

Radius; Lightweight Directory Access Protocol (LDAP)

Communication port protocol

HTTP over secure sockets; Layer (HTTPS); SSH; FTP; HTTP; SNMP; DHCP; BOOTP (Bootstrap Protocol); TCP/IP

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.200 cm

Package 1 Width

16.400 cm

Package 1 Length

24.000 cm

Package 1 Weight

405.000 g

Country of origin

IN

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304355540
• SAP 1200381326
• Code 82385955
