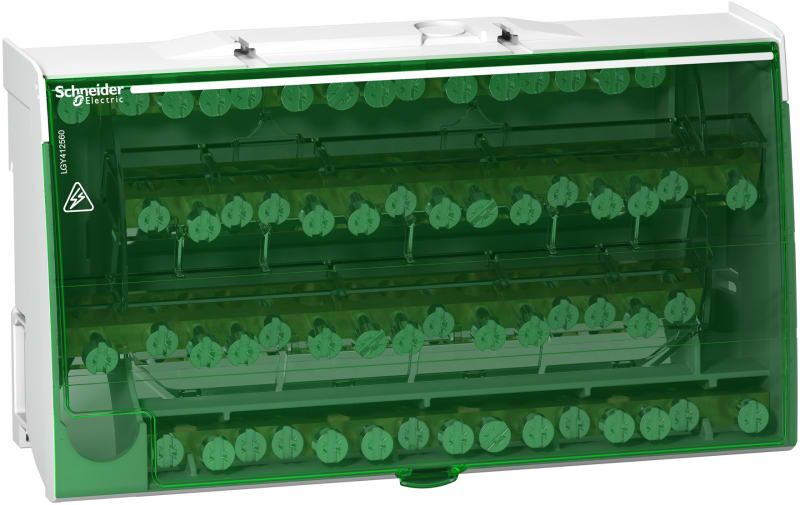

Schneider Electric Linergy DS - screw distribution block 4P - 125A - 60 holes LGY412560
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LGY412560 Distribution block 4P 125A 60 hole.
Technical Specifications
- Manufacturer part number (MPN)
- LGY412560
- EAN / GTIN
- 3606480542107
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Rated current
- 125 A
- Number of poles
- 4P
- Range
- Linergy
- Product name
- Linergy DS
- Product or component type
- Distribution block
- Mounting support
- DIN rail
- Range compatibility
- Prisma G; Prisma P; Prisma POLAR WHITE; Prisma Pack; Spacial; Kaedra; Pragma; TeSys; ComPact
- Product compatibility
- Spacial enclosures
- Poles description
- 4P
- Distribution block outgoers
- 4 x 15 holes
- [Ue] rated operational voltage
- 230 V AC Ph/N; 440 V AC Ph/Ph
- [Ui] rated insulation voltage
- 500 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 125 A at 40 °C
- [Icw] rated short-time withstand current
- 4.2 kA for 1 s
- [Ipk] rated peak withstand current
- 28 kA
- Connections - terminals
- Supply: screw terminal 1 cable(s) 10…35 mm² rigid; Supply: screw terminal 1 cable(s) 6…35 mm² flexible with cable end; Distribution: screw terminal 3 cable(s) 6…35 mm² rigid; Distribution: screw terminal 3 cable(s) 4…25 mm² flexible with cable end; Distribution: screw terminal 11 cable(s) 1.5…16 mm² rigid; Distribution: screw terminal 11 cable(s) 1.5…10 mm² flexible with cable end
- Tightening torque
- Distribution: 2 N.m flat screwdriver 6.5 mm; Distribution: 2 N.m PZ2 screwdriver 6.5 mm; Supply: 2.5 N.m flat screwdriver 9.5 mm; Supply: 2.5 N.m PZ2 screwdriver 9.5 mm; Distribution: 2 N.m flat screwdriver 8.5 mm; Distribution: 2 N.m PZ2 screwdriver 8.5 mm
- 9 mm pitches
- 20
- Height
- 100 mm
- Width
- 174 mm
- Depth
- 50.5 mm
- Product weight
- 0.562 kg
- Colour
- White (RAL 9003)
- Pollution degree
- 3
- Overvoltage category
- III
- Dielectric strength
- 2500 V
- Standards
- EN/IEC 60947-7-1; EN/IEC 61439-1
- Ambient air temperature for operation
- -25…55 °C
- Country of origin
- TN
- Warranty (in months)
- 18
- Core cross section
- 35 mm²
- With seal head
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480542107
- SAP 1000640292
- Code 8412398
