Zelio Logic SR3 Modbus slave m

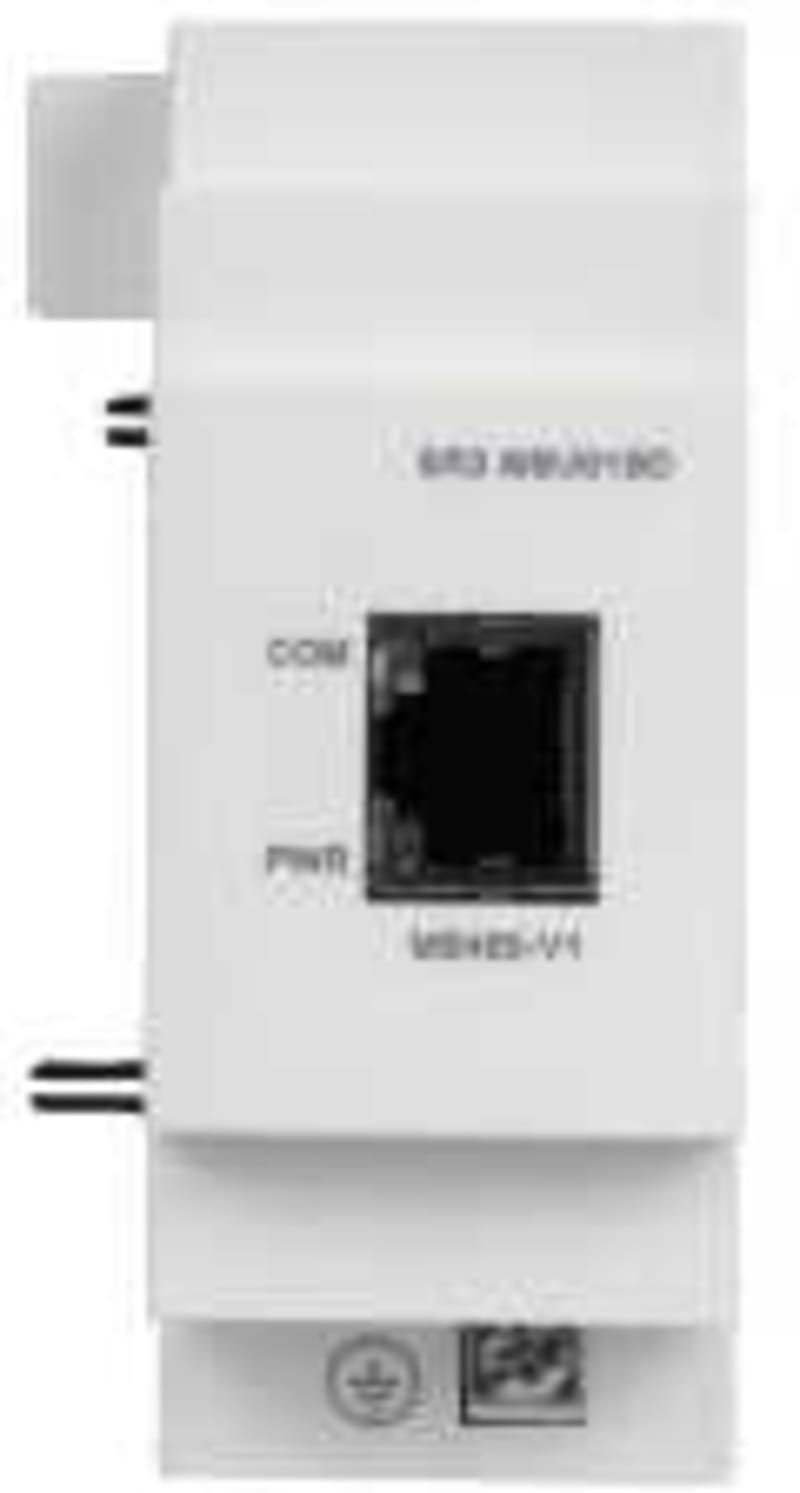

Schneider Electric SR3MBU01BD Zelio Logic SR3 Modbus slave module.

Manufacturer part number (MPN)

SR3MBU01BD

EAN / GTIN

3389110840339

Sales unit

pcs

Package quantity

48 pcs

Range of product

Zelio Logic

Product or component type

Modbus slave communication module

Wiring mode

2 or 4 wires

Product compatibility

All modules with 24 V supply SR3 B...BD

Communication port protocol

Modbus

Communication port support

RS485

Electrical connection

1 connector RJ45

Transmission frame

RTU; ASCII

Transmission rate

1200 bauds; 9600 bauds; 38400 bauds; 19200 bauds; 57600 bauds; 28800 bauds; 2400 bauds; 4800 bauds

Parity

No; Odd; Even

Number of addresses

1…247

Programming language

FBD; Ladder

Connections - terminals

Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) solid; Screw terminals, 2 x 0.25...2 x 1.5 mm² (23 AWG...16 AWG) solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end

Tightening torque

0.5 N.m

Local signalling

1 LED for communication; 1 LED for power ON

Product weight

0.11 kg

Product certifications

GOST; CSA; GL; C-Tick; UL

Standards

IEC 60068-2-27 Ea; IEC 61000-4-3; IEC 61000-4-4 level 3; IEC 61000-4-2 level 3; IEC 61000-4-5; IEC 60068-2-6 Fc

IP degree of protection

IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2

Disturbance radiated/conducted

Class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Ambient air temperature for operation

-20…40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Ambient air temperature for storage

-40…70 °C

Operating altitude

2000 m

Maximum altitude transport

3048 m

Relative humidity

95 % without condensation or dripping water

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.000 cm

Package 1 Width

6.500 cm

Package 1 Length

11.000 cm

Package 1 Weight

102.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

48

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.470 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Switching current

8 A

With relay output

No

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With display

No

Degree of protection (IP)

IP20

Basic device

Yes

Expandable

No

Expansion device

Yes

With time switch clock

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

35 mm

Height

90 mm

Depth

57 mm

HS Code

8538.90
