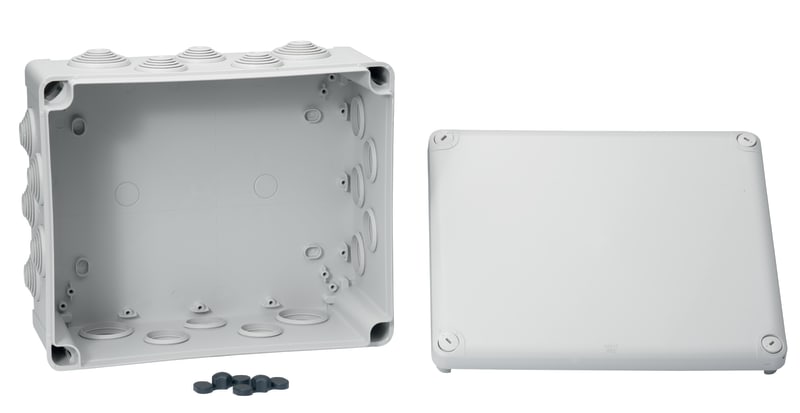

Connection Box 275X225X120 Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05017 Mureva Box, boite de dérivation IP55 + embouts 275x225x120, gris.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05017
- EAN / GTIN
- 3295150050174
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Dimensions
- 275×225×120
- product range
- Mureva BOX
- product type
- Junction box
- quantity per package
- 1 piece
- Main colour tint
- Grey
- Mounting
- Surface
- cable entry
- Grommets
- Fixing mode
- Screw-fixed: cover
- Inner dimensions
- 275 x 225 x 120 mm
- number of cable entries
- 16 diameter: 32 mm; 4 diameter: 40 mm
- Material
- PP (polypropylene): cover; SBS (styrene butadiene styrene): grommet
- Electrical insulation class
- Class II conforming to IEC 536
- Height
- 125 mm
- Width
- 295 mm
- Depth
- 245 mm
- Product weight
- 0.932 kg
- Colour tint
- Grey (RAL 7035)
- operating temperature
- -25…40 °C
- IP-Class
- IP55 conforming to IEC 60529
- IK-Class
- IK07 conforming to EN 50102
- glow wire temperature
- 750 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Number of Units in Package 3
- 84
- Country of origin
- HU
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 40 mm²
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- For tube diameter
- 25 mm
- Length
- 125 mm
- Number of inlets
- 10
- Type of housing feed-through
- Seal membrane
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Cover attachment
- Screwed
- Circuit integrity
- None
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3295150050174
- SAP 1000287887
- Code 8295890
