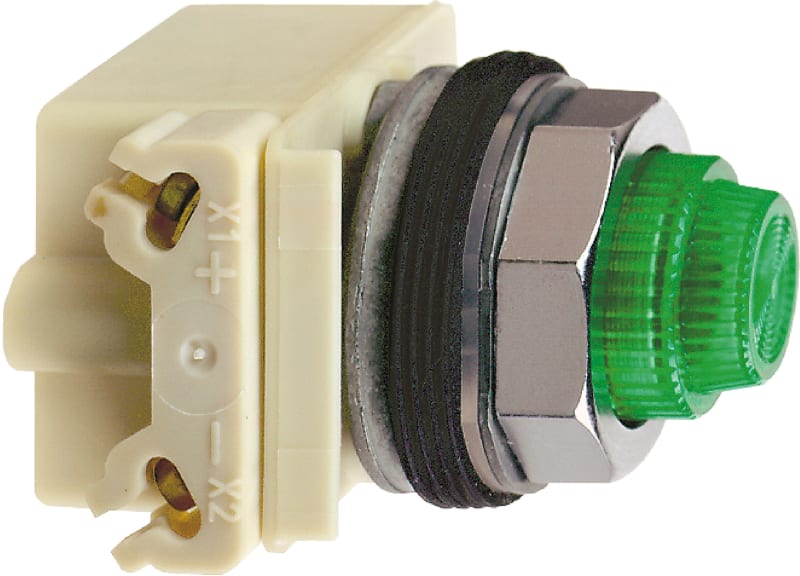

Luminaire green 24V Led BA9S

Schneider Electric 9001KP35LGG31 Luminaire green 24V Led BA9s.

Manufacturer part number (MPN)

9001KP35LGG31

EAN / GTIN

3389110916638

HS code

8543.70

Sales unit

pcs

Package quantity

16 pcs

Voltage

24 V

Range of product

Harmony 9001K

Product or component type

Pilot light

Device short name

9001K

Bezel material

Chromium plated metal

Mounting diameter

30 mm

Shape of signaling unit head

Round

Lens type

Domed plastic

Cap/operator or lens colour

Green

Light source

Green LED

Bulb base

BA 9s

Light block supply

Direct 24...28 V AC/DC

Connections - terminals

Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1

Tightening torque

0.8 N.m conforming to IEC 60947-1

shape of screw head

Cross slotted

Operating position

Any position

[Ui] rated insulation voltage

250 V (pollution degree 2) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

2.5 kV conforming to IEC 60947-1

Short-circuit protection

10 A cartridge fuse conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A

CAD overall width

54 mm

CAD overall height

70 mm

CAD overall depth

42 mm

Product weight

0.134 kg

Standards

EN/IEC 60947-5-1; JIS C 852; EN/IEC 60947-5-4; UL 508; CSA C22.2 No 14; EN/IEC 60947-1; JIS C8201-5-1; JIS C8201-1

Product certifications

NEMA; UL 508

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

NEMA degree of protection

NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6

Warranty (in months)

18

HS Code

8543.70

• EAN 3389110916638
• SAP 1200503327
• Code 82641555
