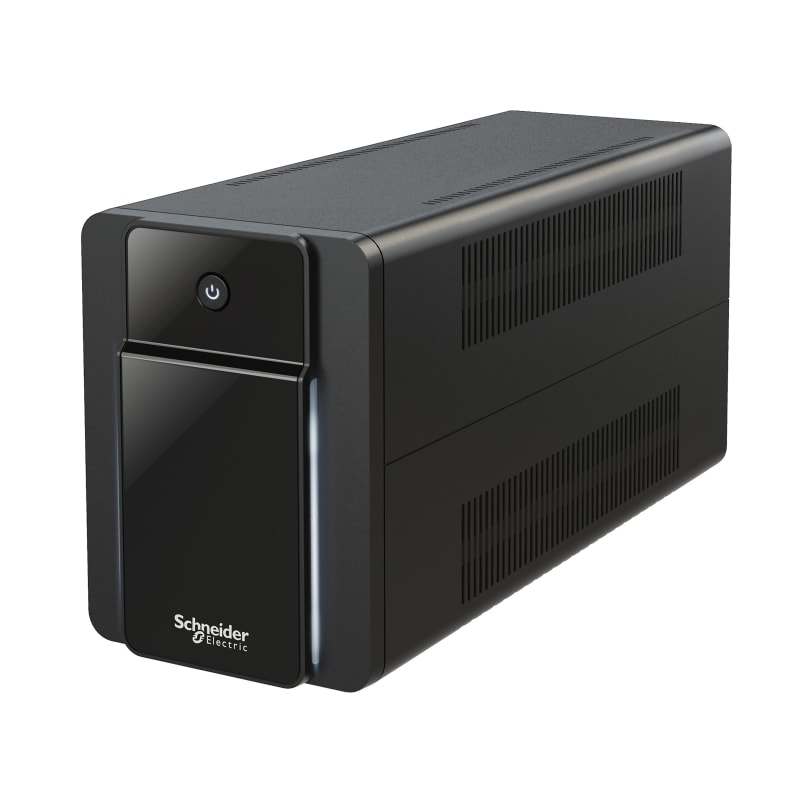

Schneider Electric SE Back-UPS, 500VA, Tower, 230V, 3 x IEC C13 outlets, AVR BXS500MI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BXS500MI SE Back-UPS BXS, 500VA, Tower, 230V, 3 x IEC C13.
Technical Specifications
- Manufacturer part number (MPN)
- BXS500MI
- EAN / GTIN
- 0731304629023
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Main input voltage
- 230 V AC 1 phase
- Cos phi
- 0.63
- Efficiency at full load
- 140...300 V
- Input frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Rated power in W
- 300 W
- Rated power in VA
- 500 VA
- Output connection
- 3 IEC 60320 C13
- Type of USB power supply
- None
- Maximum configurable power in VA
- 500 VA
- Maximum configurable power in W
- 300 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Stepped approximation to a sinewave
- Full load runtime
- 00:01:00 300 W
- Half load runtime
- 00:07:15
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 7.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- UPS connectivity
- None
- Surge energy rating
- 273 J
- Cable length
- 1.5 m
- Number of cables
- 1
- Color
- Black
- Height
- 138 mm
- Width
- 98 mm
- Depth
- 310 mm
- Product weight
- 4.2 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; CB
- Standard
- EN/IEC 62040-1:2019/A11:2021
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…3000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 40 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 12 V
- Battery graph comment
- Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- Battery design life
- 3…5 year(s)
- Battery life
- 3…5 year(s)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Number of Units in Package 3
- 12
- Warranty (in months)
- 24
- Country of origin
- China
