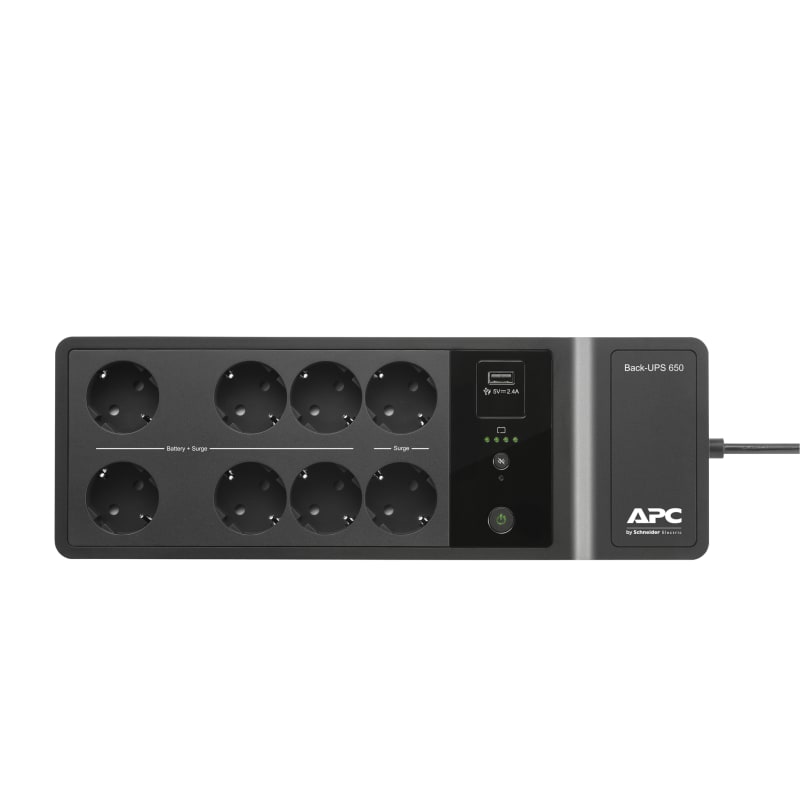

Schneider Electric APC Back-UPS, 650VA/400W Floor/Wall Mount, 230V, 8X CEE 7/3 Schuko outlets, USB Type A Port, User Replaceable Battery BE650G2-GR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BE650G2-GR APC Back-UPS 650VA, 230V, 1 USB charging port, 8 Schuko CEE7/7 outlets (2 surge).
Technical Specifications
- Manufacturer part number (MPN)
- BE650G2-GR
- EAN / GTIN
- 0731304347217
- HS code
- 8504.40
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Input connection
- CEE 7/7
- Maximum input current
- 6 A
- Switching current capacity
- 10 A
- Efficiency at full load
- 180...266 V
- Input frequency
- 47...63 Hz
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V
- Rated power in W
- 400 W
- Rated power in VA
- 650 VA
- Output connection
- 6 CEE 7/3; 2 CEE 7/3 surge
- Type of USB power supply
- USB type A
- Maximum configurable power in VA
- 650 VA
- Maximum configurable power in W
- 400 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Standby
- Waveform type
- Stepped approximation to a sinewave
- Efficiency
- 80 % (full load)
- Output frequency
- 47...63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised
- Replacement battery
- APCRBC110
- Run Time
- View Runtime Graph
- Battery capacity
- 7.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- USB port
- Surge energy rating
- 310 J
- Cable length
- 1.8 m
- Color
- Black
- Height
- 120 mm
- Width
- 130 mm
- Depth
- 365 mm
- Product weight
- 4 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- User manual
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…4572 m
- Relative humidity
- 0…90 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 45 dBA
- Operating altitude
- 0...3000 ft
- Battery voltage
- 12 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- RBC quantity
- 1
- Battery life
- 2…5 year(s)
- Battery charging power
- 7 W rated
- Number of Units in Package 1
- 1
- SCC14
- 10731304347214
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304347217
- SAP 1200723272
- Code 83845730
