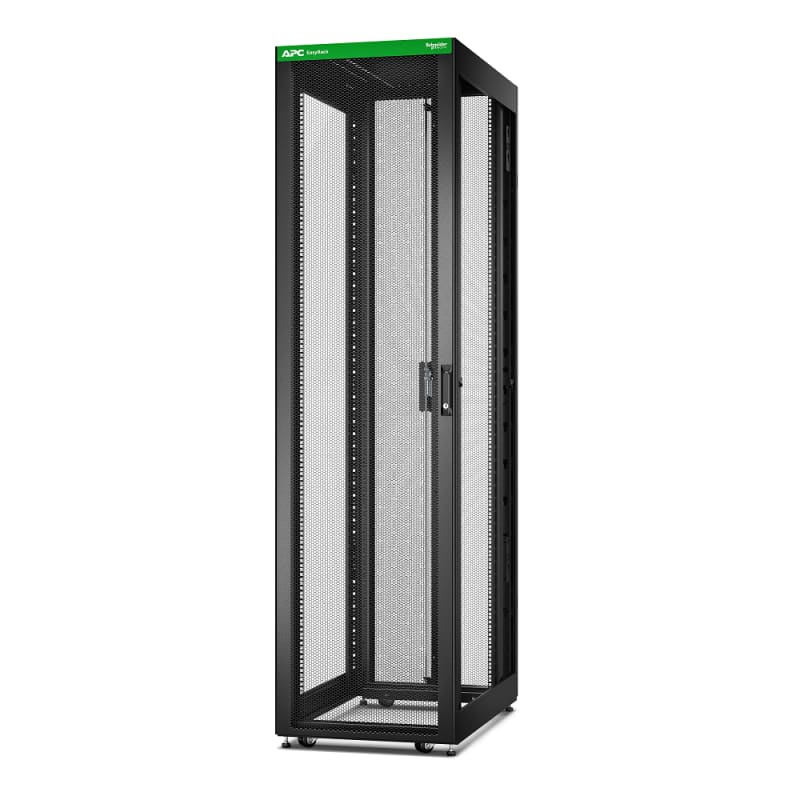

Schneider Electric APC Easy Rack, 48U, Black, with Roof, Castors, Feet, 4 Brackets, and Bottom, No Side Panels, 2258H x 600W x 1000D mm ER6800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ER6800 Easy Rack 48U B:600mm D:1000mm H:2258mm with wheel,feet, lock, 4 brackets and without side panel and bottom. Black.
Technical Specifications
- Manufacturer part number (MPN)
- ER6800 EAN / GTIN: 0731304433309 Sales unit: pcs Dimensions: 600×1000×2258 Rack units: 48 U Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Doors; Leveling feet; Mounting hardware; Pre-installed casters Height: 2258 mm Width: 600 mm Depth: 1000 mm Product weight: 85.2 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 838.2 mm minimum mounting depth: 241.6 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Number of Units in Package 1: 1 Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 48 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: No Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304433309
- SAP 1200566355
- Code 82961750
Product Documentation
More from Schneider Electric
Schneider Electric

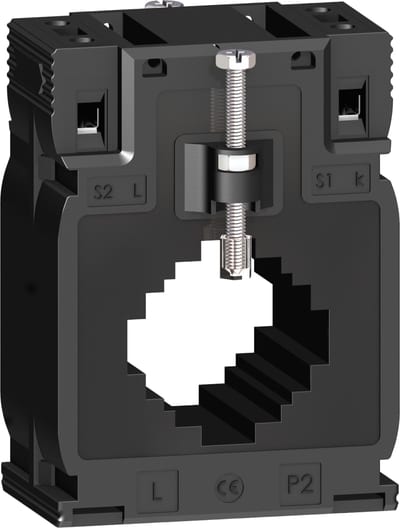

Current Transformer 400/5 KAB,Ø32+Rail
METSECT5MC040
Schneider Electric

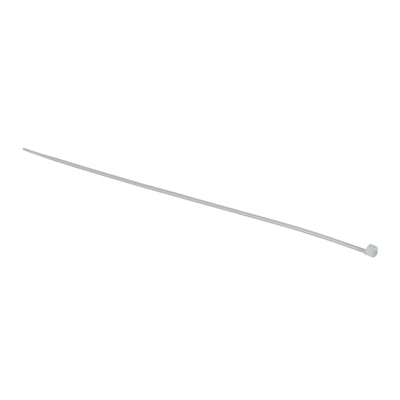

Schneider Electric Cable tie, Thorsman installation material, 200X3.6MM, clear IMT46413
Schneider Electric

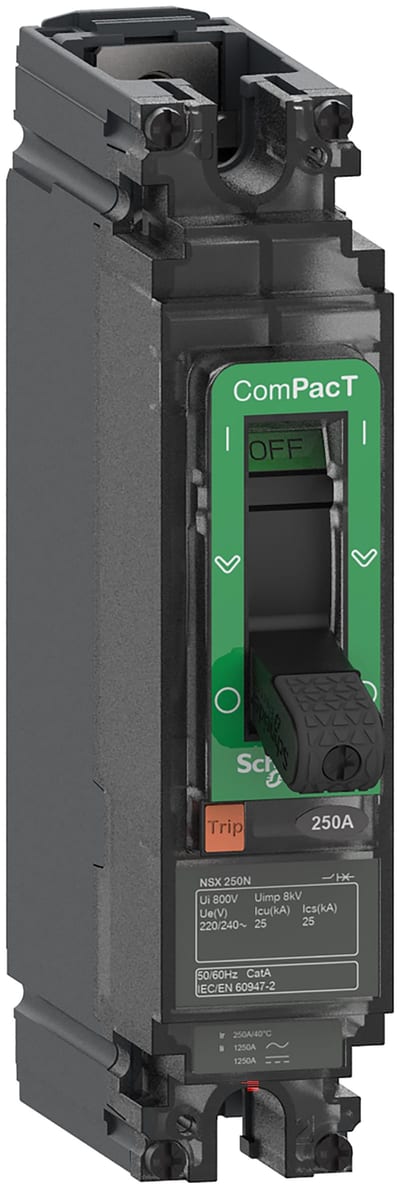

Schneider Electric Circuit breaker, ComPacT NSX160N AC/DC, 25KA/240VAC, 1 pole, TMD trip unit 160A C16N1TM160
Schneider Electric

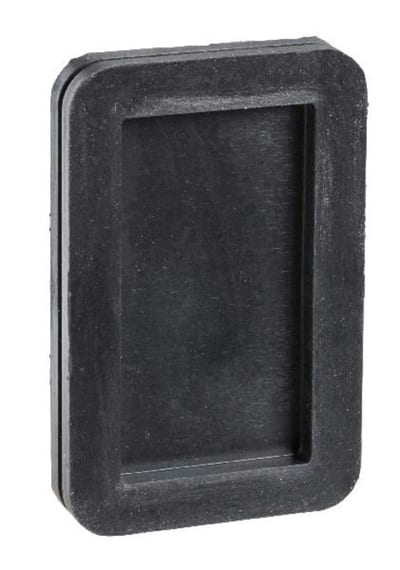

Schneider Electric 5X RECTANGULAR GROMMETS 70X40 LVS01215
Schneider Electric

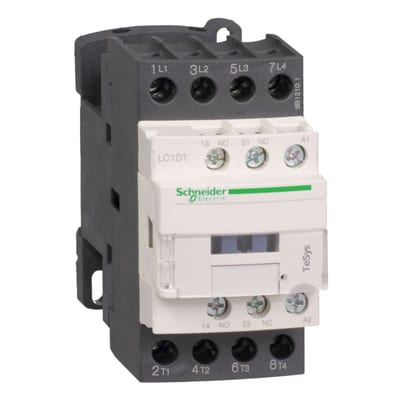

Schneider Electric Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 40A, 24VDC low consumption coil, screw clamp terminal LC1DT40BL
Schneider Electric

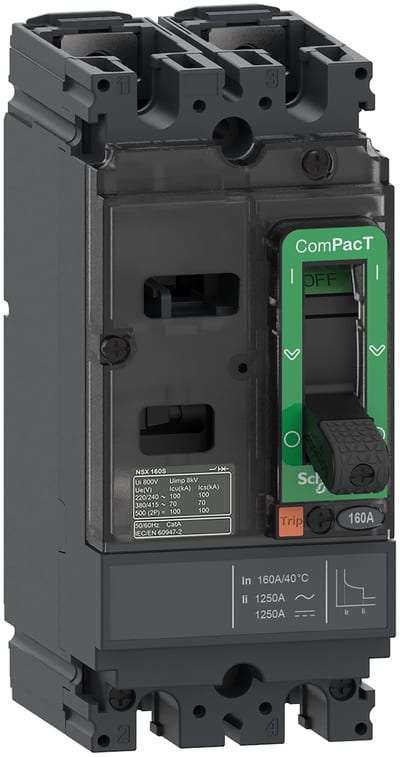

Schneider Electric Circuit breaker, ComPacT NSX160F AC/DC, 18KA/415VAC, 2 poles, TMD trip unit 125A C16F2TM125
Schneider Electric
Schneider Electric APC Smart-UPS RT Battery Pack 192V, rackmount, 4U SRTG192XLBP2
Schneider Electric

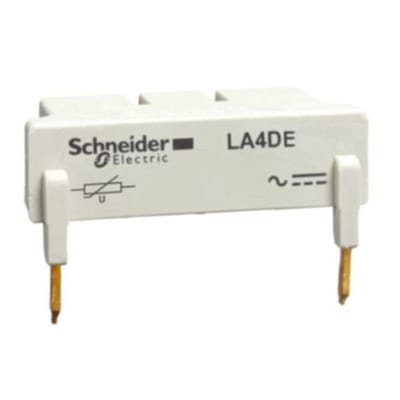

Schneider Electric TeSys D - suppressor module - varistor - 110...250 V AC LA4DE2U
