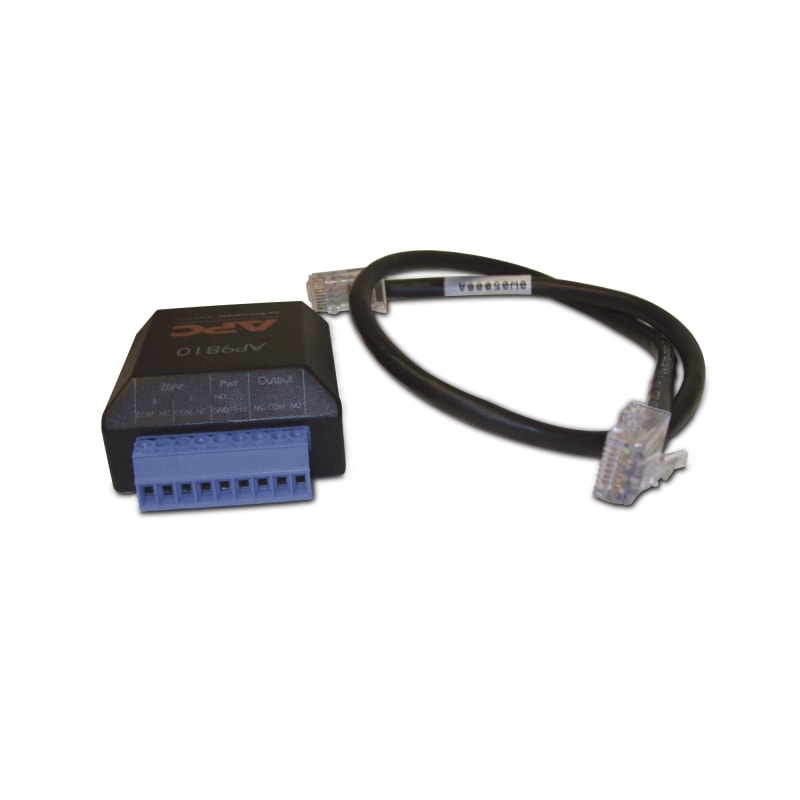

Schneider Electric Dry Contact I/O Accessory, additional dry contact input and relay outputs AP9810

Schneider Electric AP9810 APC Dry Contact In/O Accessory.

Manufacturer part number (MPN)

AP9810

EAN / GTIN

0731304274032

Sales unit

pcs

Package quantity

6 pcs

Range of product

Management Options and Cables

Provided equipment

Cat 5 Ethernet cable; User manual

Product or component type

Dry contact

Max current draw

40 mA

input voltage

24 V

Output voltage

12 V at 25 mA DC

Power supply type

Self powered via UPS interface port

Product weight

0.14 kg

Width

25.4 cm

Height

3.3 cm

Depth

4.46 cm

Mounting preference

No preference

Standards

EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-6

Storage Relative Humidity

0…95 %

Relative humidity

0…95 %

Ambient air temperature for storage

-15…65 °C

Ambient air temperature for operation

0…40 °C

Storage altitude

0…4572 m

Operating altitude

0...10000 ft; 0...50000 ft

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.300 cm

Package 1 Width

25.400 cm

Package 1 Length

12.700 cm

Package 1 Weight

140.000 g

Unit Type of Package 2

PAM

Number of Units in Package 2

576

Package 2 Height

123.000 cm

Package 2 Width

120.000 cm

Package 2 Length

100.000 cm

Package 2 Weight

80.960 kg

Country of origin

PH

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304274032
• SAP 1000455534
• Code 81089539
