Auxiliary CONTACT-OF-OFF POSITION-TA25/TA63
Pricing
Request a quote
We reply within 24 hours
Product Description

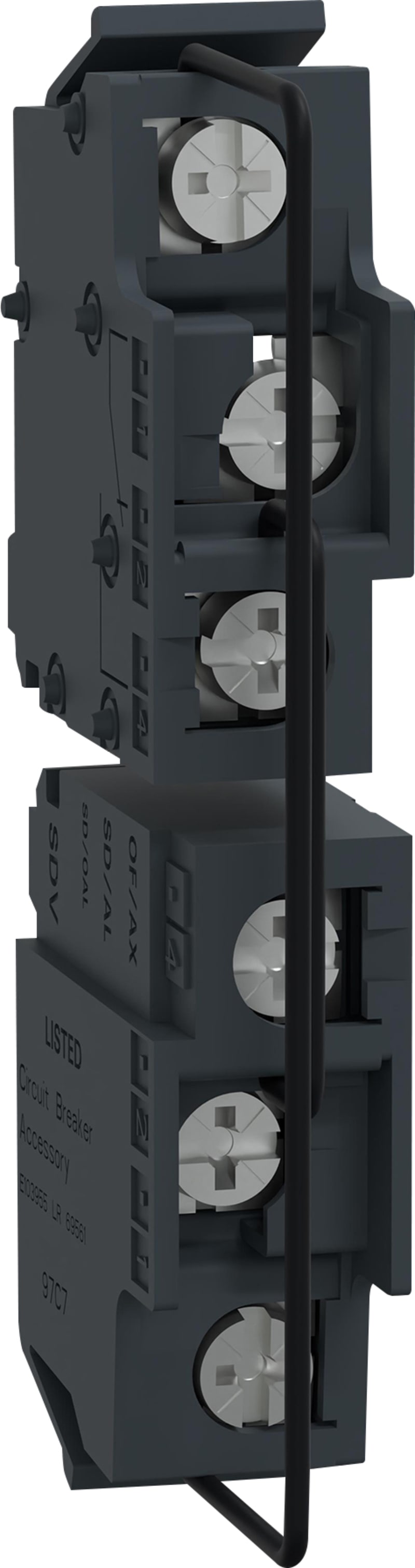

Schneider Electric TPSAUX44 Auxiliary Contact for TransferPacT ATS/RTS-OF-Off position-TA/TR25-TA/TR63.
Technical Specifications
- Manufacturer part number (MPN)
- TPSAUX44 EAN / GTIN: 3606485952710 Sales unit: pcs Package quantity: 10 pcs Range of product: TransferPacT Product or component type: Auxiliary Contact Module Device application: Signalling Auxiliary contact composition: 2 NO + 2 NC Signalling function: Switch position (off) Auxiliary connection terminal: Spring 0.5…1.5 mm² (20 AWG...16 AWG) mounting mode: Clip-on Mounting position: Inside front cover [Ith] conventional free air thermal current: 5 A minimum load: 100 mA at 24 V DC Tightening torque: 0.6 N.m +/- 0.1 N.m Product compatibility: TA25; TR25; TA63; TR63 Accessory / separate part category: Signalling accessory IP degree of protection: IP20 Pollution degree: 3 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.700 cm Package 1 Width: 7.000 cm Package 1 Length: 7.700 cm Package 1 Weight: 38.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 10 Package 2 Height: 15 cm Package 2 Width: 30 cm Package 2 Length: 40 cm Package 2 Weight: 658.000 g Country of origin: CN Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606485952710
- SAP 1200663792
- Code 83105215
Product Documentation
More from Schneider Electric
Schneider Electric
Micrologic 5.0X protection fast MTZ
LV847283
Schneider Electric

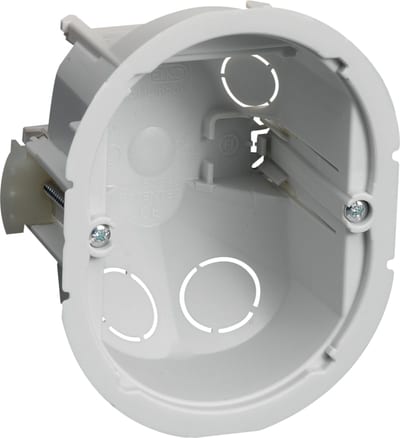

Extension ring 5mm URPP-5
1226832
Schneider Electric

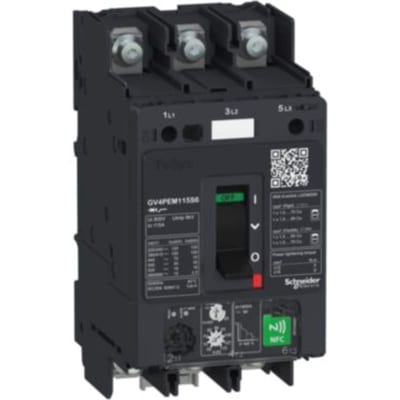

Schneider Electric TeSys GV4 - thermal magnetic multifunction circuit breaker - 2A 3P - comp. lug GV4PEM02N6
Schneider Electric

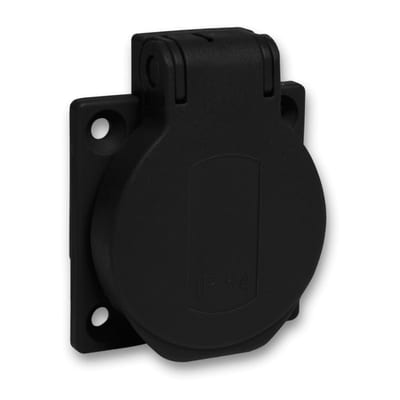

Schneider Electric Socket outlet, Mureva PK, Schuko Panel, 50X50, Black, IP54 PKS51N
