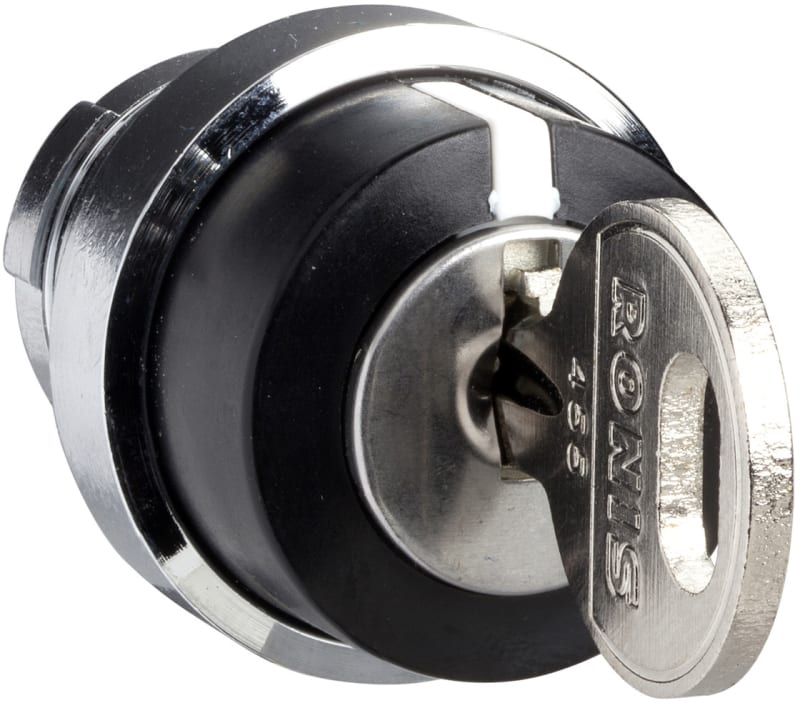

Schneider Electric KAXZ1S141 Key Selector Head 45 Degrees for KZ127

The Schneider Electric KAXZ1S141 is a cam-switch operator head for the Harmony Series K, fitted with a Key 455 lock and a 45 degree switching angle, mounted through a 22.5 mm hole. Rated for one million operations across -25 to 55 degrees C with IP65/IP67 front protection. Typical use is on control panels of machines and switchgear where an authorised-operator changeover is required.

Manufacturer part number (MPN)

KAXZ1S141

EAN / GTIN

3389110980806

Sales unit

pcs

Package quantity

50 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAX

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With bezel Ø 28.5 mm, metal

Type of operator

key key 455

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Switching angle

45 °

Mechanical durability

1000000 cycles

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

21 mm

Product weight

0.065 kg

Compatibility code

KAX

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

5.000 cm

Package 1 Length

6.500 cm

Package 1 Weight

67.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

50

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.551 kg

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP65/IP67

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

No

HS Code

8538.90

• EAN 3389110980806
• SAP 1000253579
• Code 8113439
