Product Description
Schneider Electric NSYS3D141030DP WALL-MOUNT CABINET M/PL 1400x1000x300.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D141030DP
- EAN / GTIN
- 3606480159817
- Sales unit
- pcs
- Dimensions
- 1400×1000×300
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1400 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 2 door with lock; 1 mounting plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; GL; cUL; UL; BV
- Product weight
- 107 kg
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 153.000 cm
- Package 1 Width
- 103.000 cm
- Package 1 Length
- 36.000 cm
- Package 1 Weight
- 108.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1400 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159817
- SAP 1000089570
- Code 8914777
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric KAXZ1S141 Key Selector Head 45 Degrees for KZ127
Schneider Electric
Schneider Electric A9F95406 ACTI9 IC60L Miniature Circuit Breaker 4P 6 A, Curve K
Schneider Electric
EV Canalis KN kit 7,4kW RDCB
EVK8KN2PB40
Schneider Electric
Schneider Electric PratiKa socket - screw - angled - 32A - 2P + E - 200...250 V AC - wall PKF32W723
Schneider Electric
Schneider Electric right angle terminal extensions, ComPact NSX 100/160/250, set of 4 parts LV429262
Schneider Electric
External corner INKA-152AN YH
5575260
Schneider Electric

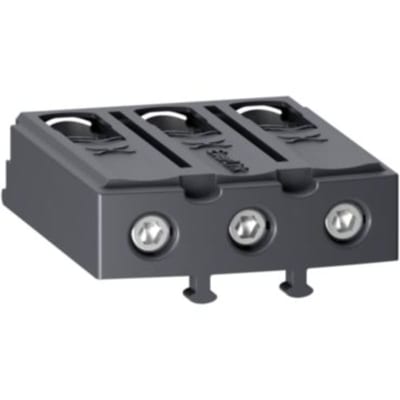

Everlink Terminal Block
