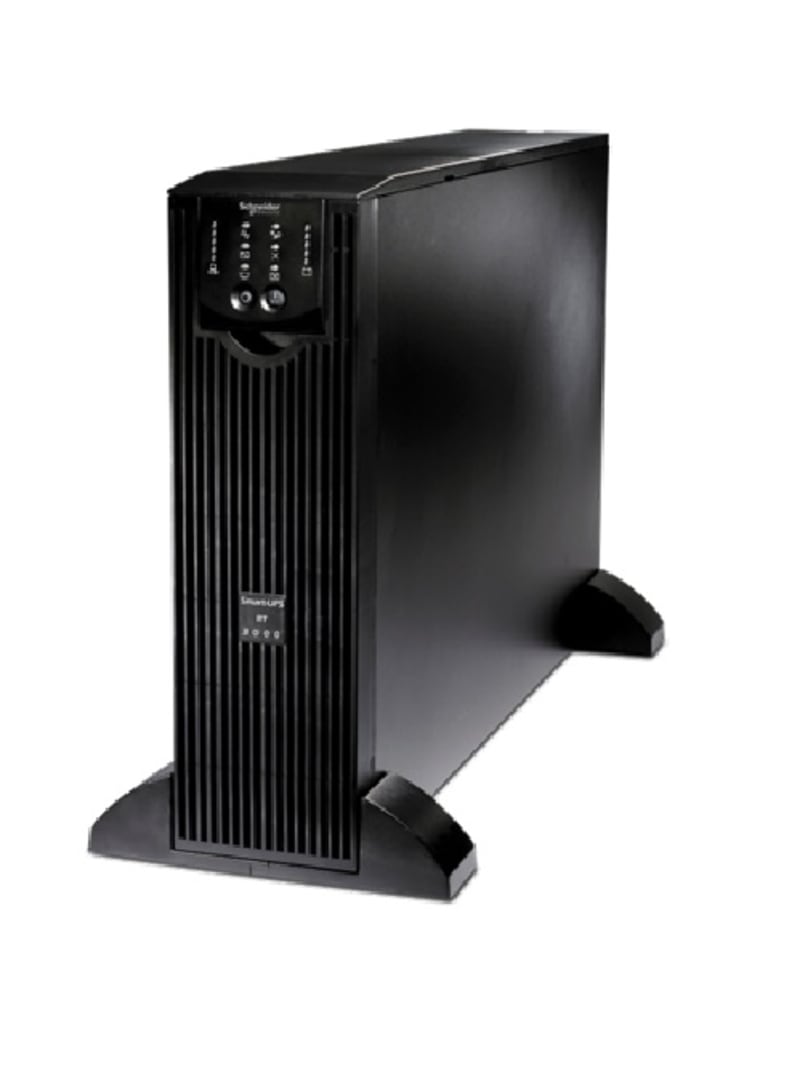

Schneider Electric On-Line UPS 3000VA 230V with pre-installed I/O hardwire kit SR13KXIET
Part numberSR13KXIETEAN / GTIN0731304310747HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SR13KXIET APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- SR13KXIET
- EAN / GTIN
- 0731304310747
- Sales unit
- pcs
- Presentation
- Proven Industrial UPS power protection for control applications and harsh environments.
- Main input voltage
- 230 V
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 160...280 V
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Output voltage
- 230 V
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 2100 W
- Rated power in VA
- 3000 VA
- Output connection
- Hard wire 3-wire (H N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 3 %
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2100 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 92 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
- Replacement battery
- APCRBC140
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rating
- 480 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 3U
- Number of cables
- 1
- Color
- Black
- Height
- 432 mm
- Width
- 130 mm
- Depth
- 660 mm
- Product weight
- 54.55 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- CD with software; Smart UPS signalling RS-232 cable; User manual
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- BSMI; C-Tick; CE; CSA; GOST; JEON; VCCI; VDE
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 55 dBA
- Heat dissipation
- 609 Btu/h
- Operating altitude
- 0...10000 ft
- Battery type
- Lead-acid battery
- Extendable runtime
- 1
- Included battery module
- 2
- Typical recharge time
- 2.5 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 382 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 98.000 cm
- Package 1 Width
- 60.300 cm
- Package 1 Length
- 34.700 cm
- Package 1 Weight
- 63.640 kg
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304310747
- SAP 1200723234
- Code 83857934
