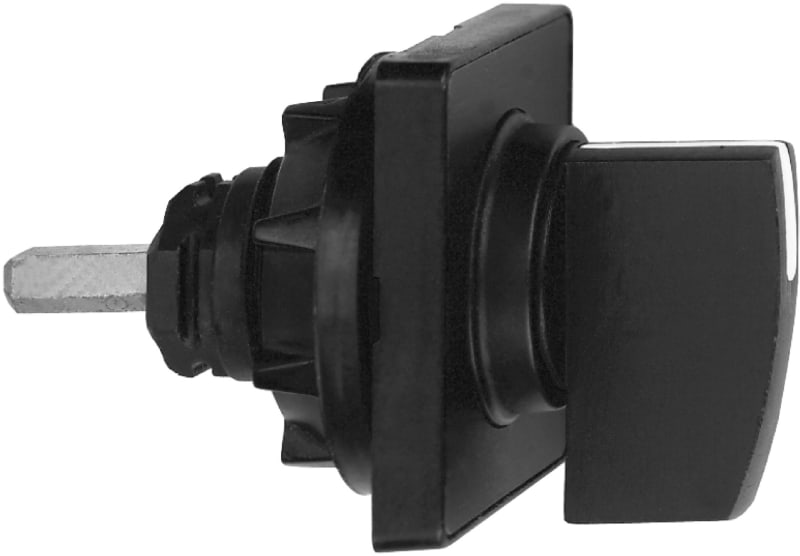

BETJ.DEL FOR Cam switch (KAC1S)

Schneider Electric KAC1S Betj.Del For Cam Switch.

Manufacturer part number (MPN)

KAC1S

EAN / GTIN

3389110483239

Sales unit

pcs

Package quantity

15 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAC

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With front plate 45 x 45 mm

Type of operator

key 601A

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Switching angle

45 °; 90 °

Mechanical durability

1000000 cycles

CAD overall width

45 mm

CAD overall height

45 mm

CAD overall depth

69 mm

Product weight

0.063 kg

Compatibility code

KAC

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.6 cm

Package 1 Width

6.6 cm

Package 1 Length

8.0 cm

Package 1 Weight

69.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

60

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

4.67 kg

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Square

Type of control element

Key

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110483239
• SAP 1000052798
• Code 8832009
