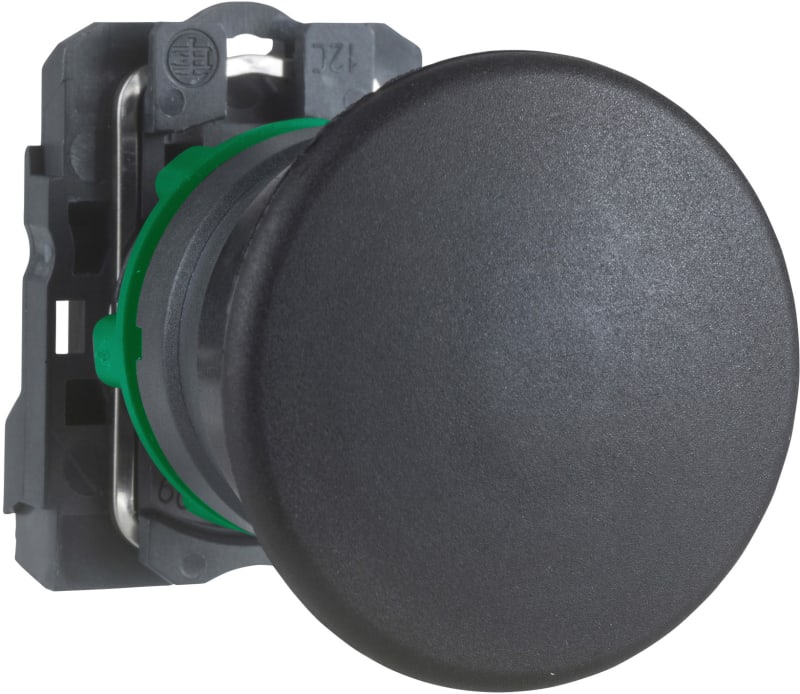

Mushroom push-button Impulse Black 1NO

Schneider Electric XB5AC21 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. 22mm, mushroom push-buttons - complete in plastic.

Manufacturer part number (MPN)

XB5AC21

EAN / GTIN

3389110134452

Sales unit

pcs

Package quantity

42 pcs

Contact configuration

1 NO

Range of product

Harmony XB5

Product or component type

Push-button

Device short name

XB5

Bezel material

Plastic; Dark grey plastic

Head type

Standard

Fixing collar material

Plastic

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Black mushroom Ø 40 mm

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1; Faston connectors, connection size: 1 x 6.35 mm; Faston connectors, connection size: 2 x 2.8 mm

Height

43 mm

Width

40 mm

Depth

82 mm

Product weight

0.062 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

HS Code

8536.50

• EAN 3389110134452
• SAP 1000018175
• Code 8150937
