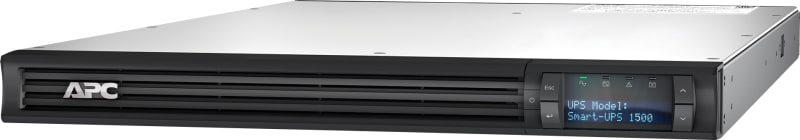

Schneider Electric APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 230V, 4X IEC C13 outlets, SmartSlot, AVR, LCD SMT1500RMI1U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMT1500RMI1U APC -UPS, Line Interactive, 1500VA, Rackmount 1U, 230V, 4x IEC C13-outlet, SmartSlot, AVR, LCD.
Technical Specifications
- Manufacturer part number (MPN)
- SMT1500RMI1U
- EAN / GTIN
- 0731304299400
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC 1 phase
- Input connection
- IEC 320 C14
- Efficiency at full load
- 174...286 V
- Input frequency
- 50/60 Hz
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 1000 W
- Rated power in VA
- 1500 VA
- Output connection
- 4 IEC 320 C13; 2 IEC Jumpers
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 1000 W
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Replacement battery
- APCRBC88
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 540 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 1U
- Cable length
- 2.4 m
- Color
- Black
- Height
- 44 mm
- Width
- 432 mm
- Depth
- 665 mm
- Product weight
- 24.09 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- CD with software; Documentation CD; Installation guide; Rack mounting support rails; Smart UPS signalling RS-232 cable; USB cable; Warranty card
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; VDE; UK PSTI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 46 dBA
- Heat dissipation
- 116 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 73 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20 cm
- Package 1 Width
- 57.5 cm
- Package 1 Length
- 79.4 cm
- Package 1 Weight
- 29.09 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 5
- Package 2 Height
- 50 cm
- Package 2 Width
- 100 cm
- Package 2 Length
- 120 cm
- Package 2 Weight
- 160 kg
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304299400
- SAP 1000629628
- Code 8558472
Product Documentation
