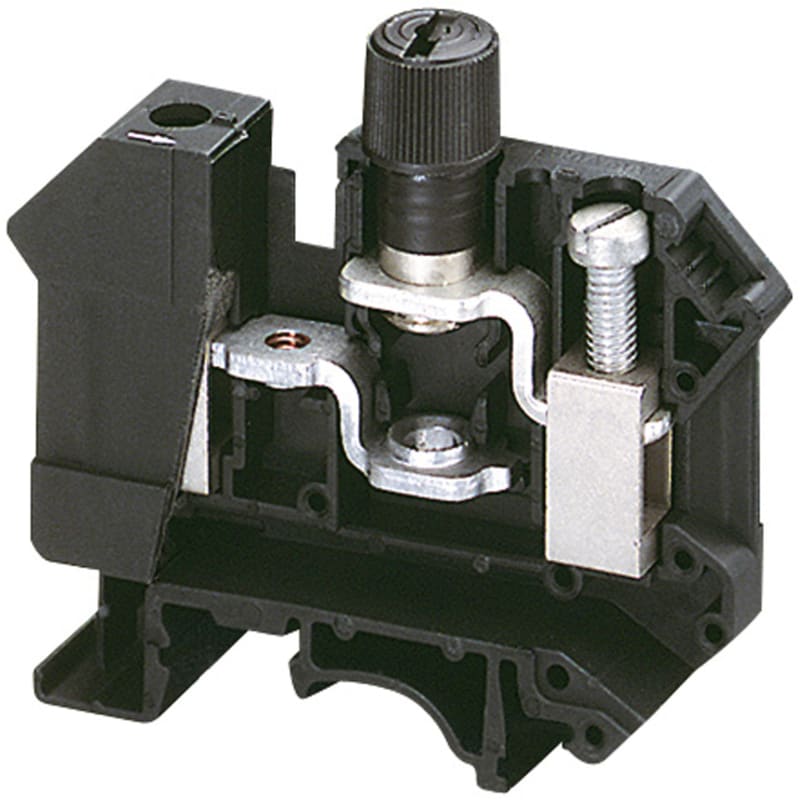

Fuse terminal, 5X20 16mm² black 2P

Schneider Electric NSYTRV162SF Fuse terminal, 5X20 16mm² black 2p.

Manufacturer part number (MPN)

NSYTRV162SF

EAN / GTIN

3606480532320

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

16 mm²

Range

Linergy

Product name

TR

Product or component type

Terminal block

Device short name

TRV

Terminal block type

Fixed carrier

Device application

Protection

Associated connection component

Cylindrical fuse

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

16 mm²

Length

62 mm

Colour

Black

Quantity per set

Set of 50

Fuse size

5 x 20 mm

Width

12 mm

Height

57.2 mm

Connections - terminals

1 x screw terminal: upstream; 1 x screw terminal: downstream

number of connections

2

Connection position

Sideways

Number of measurement input

0

Cable cross section

1.5…16 mm², flexible with cable end; 0.08…2.5 mm², flexible without cable end; 0.5…16 mm², solid without cable end

Tightening torque

1.5…1.8 N.m

Wire stripping length

11 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

500 V conforming to EN/IEC 60947-7-1; 300 V UL; 300 V CSA

[In] rated current

10 A conforming to EN/IEC 60947-7-1; 20 A UL; 20 A CSA

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 Ω.cm conforming to IEC 60093; 10000 Ω.cm conforming to VDE 0303-T30

Surface resistance

1000 MOhm conforming to IEC 60093; 1000 MOhm conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

33.8 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

DNV; UL; CSA

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

3400

Country of origin

PL

Warranty (in months)

18

Type of fuse insert

G-fuse 5x20 mm

Type of fuse holder

Screwable

Type of indication element for defect indication

None

Connectable conductor cross section solid-core

0.5–16 mm²

Connectable conductor cross section multi-wired

0.5–16 mm²

Rated current In

10 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

12 mm

Depth

62 mm

Closing plate required

No

HS Code

8536.90
