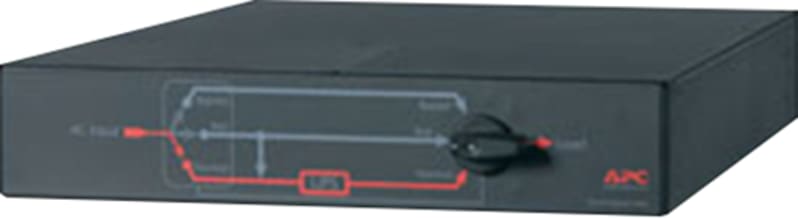

Schneider Electric APC Service Bypass Panel- 230V; 32A; MBB; Hardwire input; (4) IEC-320 C19 Output SBP6KRMI2U

Schneider Electric SBP6KRMI2U APC Service Bypass Panel- 230V.

Manufacturer part number (MPN)

SBP6KRMI2U

EAN / GTIN

0731304212614

Sales unit

pcs

Main Input Voltage

230 V

Product or component type

Bypass kit

Main Output Voltage

230 V

Number of rack unit

2U

Provided equipment

Installation guide; Rack mounting brackets; User manual

Range of product

Maintenance Bypass Panels

Colour

Black

Height

89 mm

Width

432 mm

Depth

660 mm

Product weight

11.36 kg

Mounting location

Front

Mounting preference

Lower

mounting mode

Rack-mounted

Network frequency

50/60 Hz

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Max line current

32 A

Input current limits

32 A

Load capacity

7680 VA

Power factor

0…1

Max current draw

32 A

Number of power socket outlets

4 IEC 60320 C19

Protection type

Circuit breaker

Efficiency

99 %

Product certifications

CSA; GOST

Standards

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

-20…50 °C

Relative humidity

0…95 %

Operating altitude

0...15000 ft

Ambient air temperature for storage

-40…65 °C

Storage Relative Humidity

0…95 %

Storage altitude

0…15240 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

20.3 cm

Package 1 Width

99.1 cm

Package 1 Length

61 cm

Package 1 Weight

22.72 kg

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304212614
• SAP 1000653535
• Code 8642521
