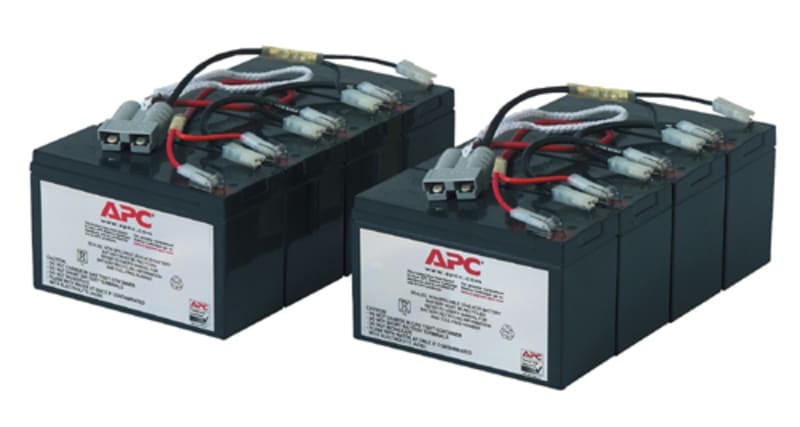

Schneider Electric APC Replacement Battery Cartridge #12 with 2 Year Warranty RBC12
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric RBC12 APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- RBC12
- EAN / GTIN
- 0731304003342
- Sales unit
- pcs
- Product or component type
- Replacement battery cartridge
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- All required connectors; Battery recycling guide; Reusable packaging; Installation guide
- Number of battery free slots
- 0
- Number of battery filled slots
- 0
- Device mounting
- Stand alone battery stack
- Battery voltage
- 48 V
- Additional information
- RBC 12 is composed of two seperate battery cells. The Net dimensions are measured per cell.
- Number of battery replacement quantity
- 1
- Colour
- Black
- Height
- 97 mm
- Width
- 254 mm
- Depth
- 152 mm
- Product weight
- 20 kg
- mounting mode
- Not rack-mountable
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...10000 ft
- Relative humidity
- 0…95 %
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Storage Relative Humidity
- 0…95 %
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 22.9 cm
- Package 1 Width
- 39.4 cm
- Package 1 Length
- 57.2 cm
- Package 1 Weight
- 22.86 kg
- Country of origin
- PH
- Warranty (in months)
- 24
- Suitable for various applications
- No
- Suitable for UPS
- Yes
- Suitable for battery charger unit
- No
- Suitable for telecom
- No
- Front connection
- No
- Nominal voltage
- 48 V
- Capacity 15h
- 7.5 Ah
- Capacity 20h
- 7.5 Ah
- Plastic housing
- Yes
- Length
- 152 mm
- Height including pole
- 97 mm
- Weight
- 200 kg
- Ambient temperature
- 0–40 °C
- Lifetime at 20 °C
- 1 year
- Eurobat certified lifetime
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 0731304003342
- SAP 1000455538
- Code 8561657
Product Documentation
More from Schneider Electric
Schneider Electric
1 hulls gland plate 1600X600 SF
NSYEC1661
Schneider Electric
Of+sd FOR NG125 (19072)
Schneider Electric

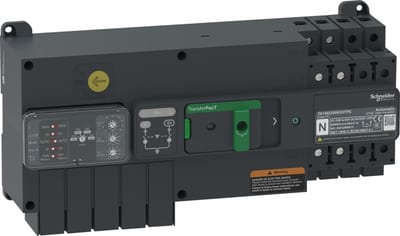

Schneider Electric transfer switch, TransferPacT automatic, 50A, 230V, 2P, rotary, frame 100A TA10D2S0503TPE
