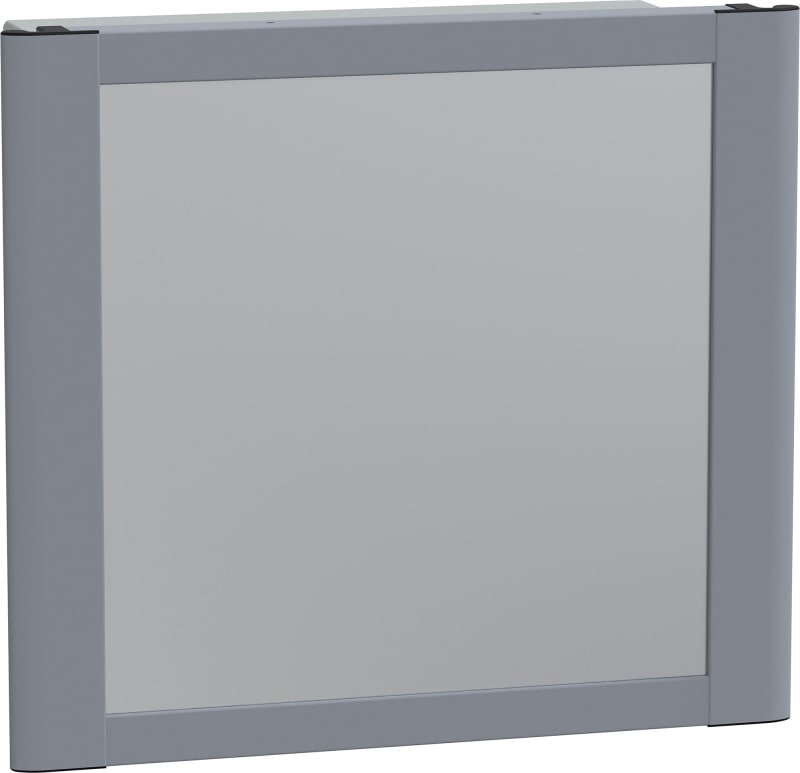

Schneider Electric HMI encl. PanelSet S3CM H500XW500XD250IP54 IK10, RAL7035.REAR door. NSYS3CM505025
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3CM505025 CABINET For Operator TERMI 5X5X2,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3CM505025
- EAN / GTIN
- 3606480212901
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3CM
- Application
- Human-machine dialogue application
- Category
- Control enclosure
- Enclosure nominal height
- 500 mm
- Enclosure nominal width
- 500 mm
- Enclosure nominal depth
- 250 mm
- Installation accessory type
- Suspension system
- Product destination
- Interface
- Device composition
- 1 body; 1 door with lock; 2 rail; 1 reinforcement plate; 1 front trim frame
- Body type
- Single piece body
- Door type
- Plain
- Number of doors
- Rear: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Rear
- Removable parts
- Door by hinges; Trim frame by screws; 2 rails by screws
- Material
- Enclosure and front face: steel; Trim frame: aluminium
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Front face: grey (RAL 7040)
- Standards
- UL
- Product weight
- 16.53 kg
- IP degree of protection
- IP54 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 29.000 cm
- Package 1 Width
- 62.000 cm
- Package 1 Length
- 63.000 cm
- Package 1 Weight
- 16.530 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 14
- Package 2 Height
- 200.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 254.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 500 mm
- Depth
- 250 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP54
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480212901
- SAP 1200500789
- Code 82623902
