Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 500X750X420 IP65 NSYPLA574G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLA574G THALASSA 7035 500X750X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLA574G
- EAN / GTIN
- 3606480774973
- Sales unit
- pcs
- Dimensions
- 500×750×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLA
- Nominal height
- 500 mm
- Nominal width
- 750 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door
- Body type
- Sealed top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL 508 A
- NEMA degree of protection
- NEMA 12; NEMA 1; NEMA 13; NEMA 3X; NEMA 5; NEMA 3S; NEMA 2; NEMA 3; NEMA 3R
- Product certifications
- DNV Marine; Veritas; UL/cUL listed
- Electrical insulation class
- Class II
- IP degree of protection
- IP65 conforming to IEC 60529 (completely sealed)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 500 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP65
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 726 N
- Max. permitted load of the door(s) according to IEC 62208
- 108 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480774973
- SAP 1000752467
- Code 8489392
Product Documentation
More from Schneider Electric
Schneider Electric
Sign flush in grey plastic (ZBYFP2304C0)
Schneider Electric
Schneider Electric transfer switch, TransferPacT Active automatic, 50A, 230V, 2P, LCD,frame 100A TA10D2L0503TPE
Schneider Electric
Cablepl. 7035 FOR500X420 PLA
NSYECPLAZ54G
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X500X420 IP44 NSYPLAZT1054G
Schneider Electric

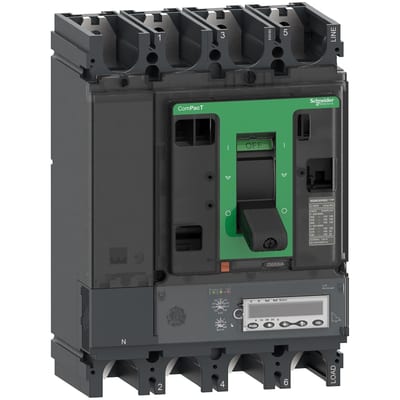

Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 4 poles, MicroLogic 6.3E trip unit 400A C40R46E400
Schneider Electric

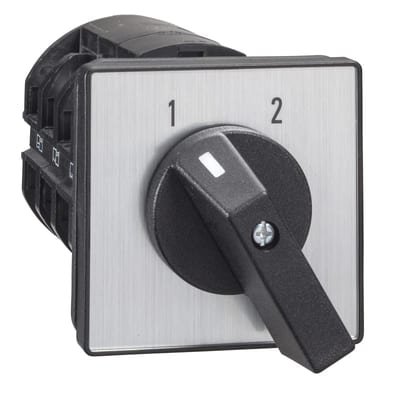

Schneider Electric cam changeover switch - 4-Pole - 60° - 63 A - screw mounting K63H014UP
Schneider Electric

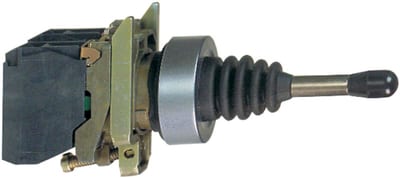

Controller, 4-Direction, without spring-return (XD4PA14)
Schneider Electric

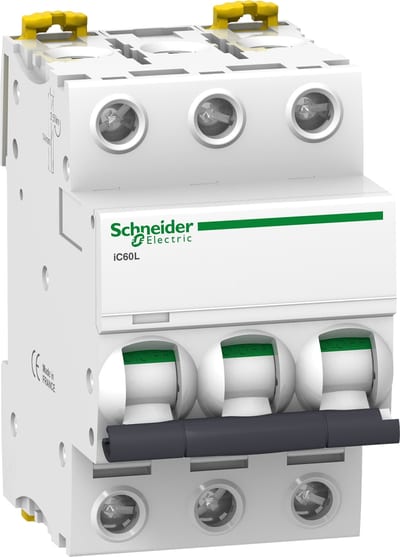

Schneider Electric A9F94301 ACTI9 IC60L Miniature Circuit Breaker 3P 1 A, Curve C
