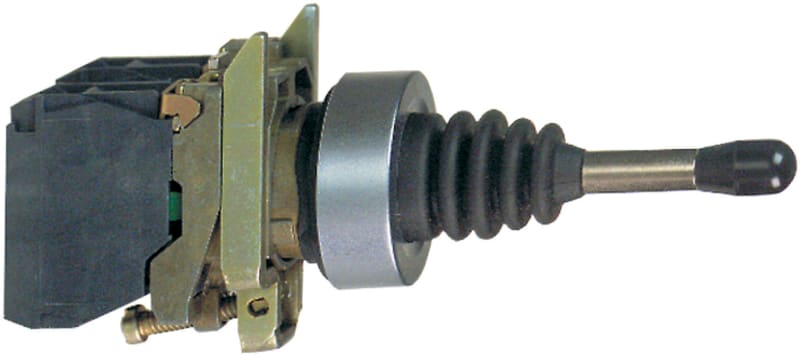

Controller, 4-Direction, without spring-return (XD4PA14)

Schneider Electric XD4PA14 Joystik 4 Direction Without Spring return.

Manufacturer part number (MPN)

XD4PA14

EAN / GTIN

3389110887426

Sales unit

pcs

Package quantity

40 pcs

Range of product

Harmony XDA

Product or component type

Joystick controller

Device short name

XD4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Type of operator

Stay put, long operating shaft 54 mm length

Operator position information

5 positions

Operator direction information

4 directions

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

CAD overall width

30 mm

CAD overall height

46.5 mm

CAD overall depth

133 mm

Product weight

0.133 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shape of signaling unit head

Round

Notch per direction

1

Contacts usage

Standard

Positive opening

Without

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-5; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

40

Country of origin

FR

Warranty (in months)

18

Number of switch positions

4

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

22 mm

Number of actuation directions

4

Number of normally open contacts per actuation direction

1

With retraction in 0-position

No

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

54 mm

HS Code

8536.50
