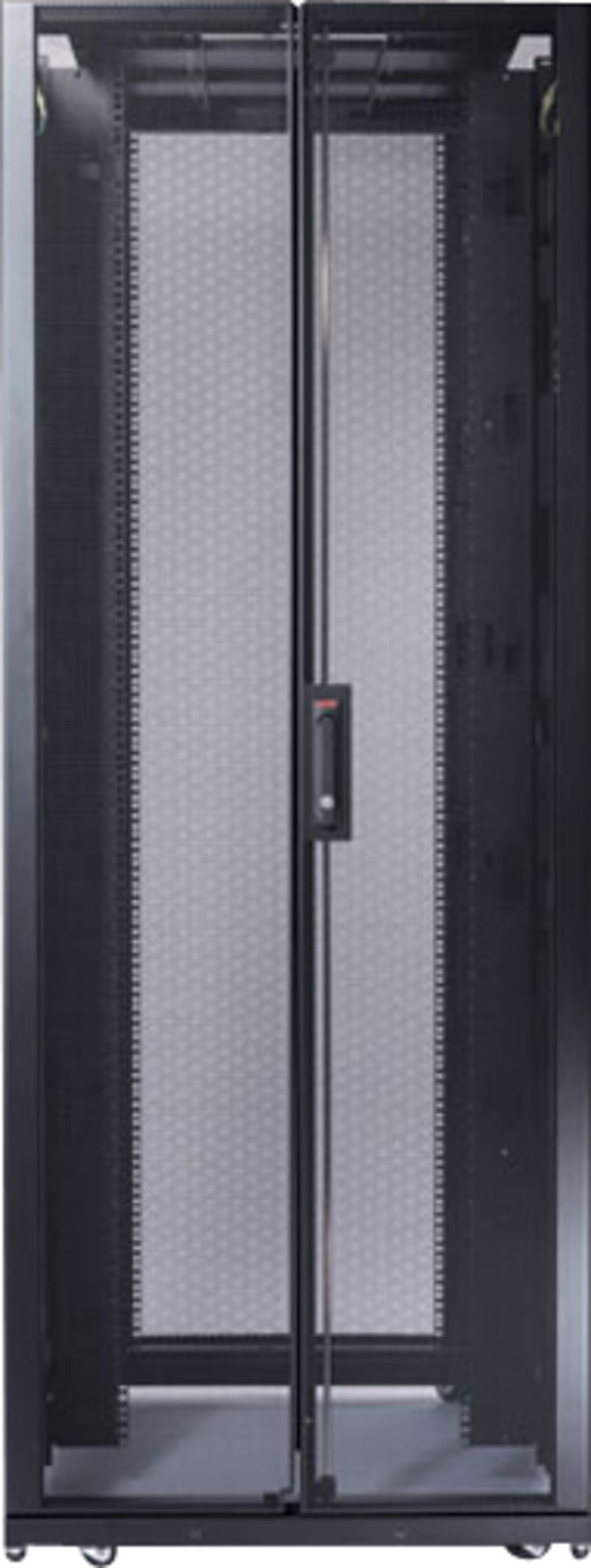

Schneider Electric APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 750W x 1200D mm AR3357
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AR3357 NetShelter SX 48U 750mm Wide x.
Technical Specifications
- Manufacturer part number (MPN)
- AR3357 EAN / GTIN: 0731304259367 Sales unit: pcs Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Leveling feet; Mounting hardware; Pre-installed casters; Side panels Height: 2258 mm Width: 750 mm Depth: 1200 mm Product weight: 185.45 kg Colour: Black Mounting preference: No preference mounting mode: Not rack-mountable Maximum mounting depth: 1048 mm minimum mounting depth: 261.9 mm Rack width: 19" Marking: 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels Permanent permissible load: 1020.6 kg dynamic; 1701.0 kg static Standards: UL 2416; UL 60950-1; EIA-310E Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 240 cm Package 1 Width: 85.1 cm Package 1 Length: 133.4 cm Package 1 Weight: 201.82 kg Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: None Number of height units: 48 Max. load capacity: 1701 kg With roof plate: Yes With earthing: No With front door: Yes With sidewall: Yes Demountable: Yes material: Steel Surface finishing: Powder coating Degree of protection (IP): IP20 Country of origin: Czechia
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304259367
- SAP 1000462856
- Code 8735510
Product Documentation
More from Schneider Electric
Schneider Electric
Push-button flush for LED white (ZB4FH013)
Schneider Electric
Rail adapter NSX400-630 3P
LV432623
Schneider Electric
Schneider Electric Heavy load cross rails, PanelSeT SFN, PanelSet SF, W400MM, set of 2 NSYHLCR40
Schneider Electric

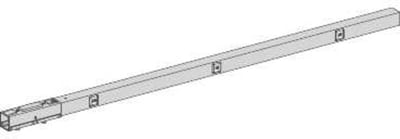

Schneider Electric Straight length, Canalis KBB, 40 A, 1 circuit 3L+N+PE, 3 tap-off units, 3 m, white KBB40ED4303W
Schneider Electric
Konnektorsett FOR M2X1 - PSU
TMAT2PSET
Schneider Electric

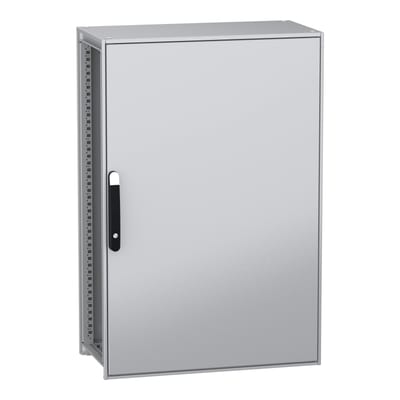

Floor-standing cabinet SFN m/m.pl 1200X800X400 (NSYSFN12840P)
Schneider Electric

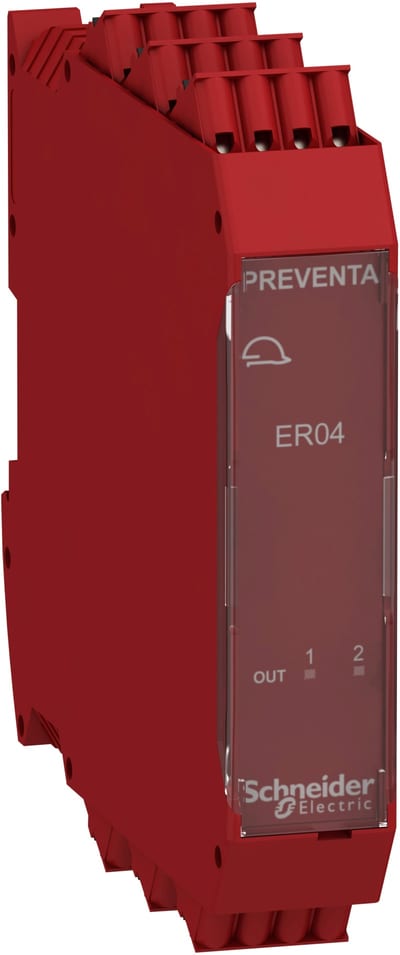

Schneider Electric 4 safety relay outputs expansion module with spring term XPSMCMER0004G
Schneider Electric

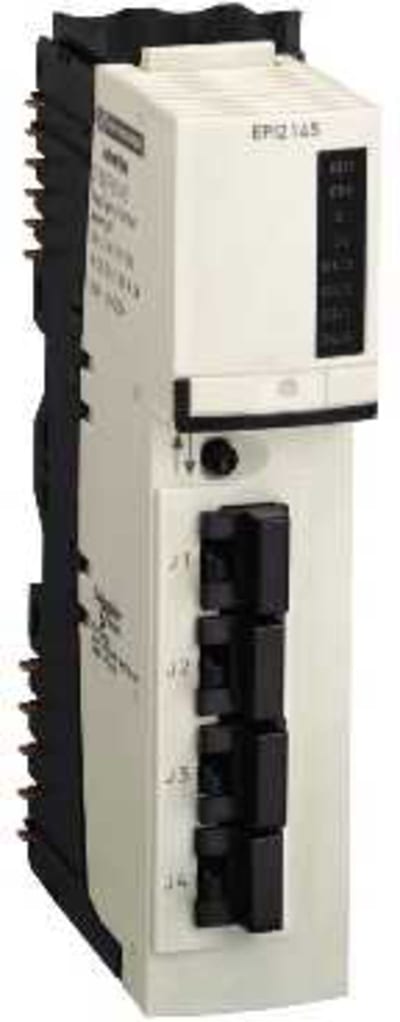

Schneider Electric parallel interface kit STB - 12 I CH - 8 O CH STBEPI2145K
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AR3357?
- AR3357 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is AR3357.
- What is the HS code for AR3357?
- The customs tariff (HS) code for AR3357 is 9403.20.
- Who manufactures AR3357?
- AR3357 is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for AR3357?
- Yes — the AR3357 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AR3357?
- The minimum order quantity is 1.
- Is AR3357 available?
- Yes — AR3357 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
