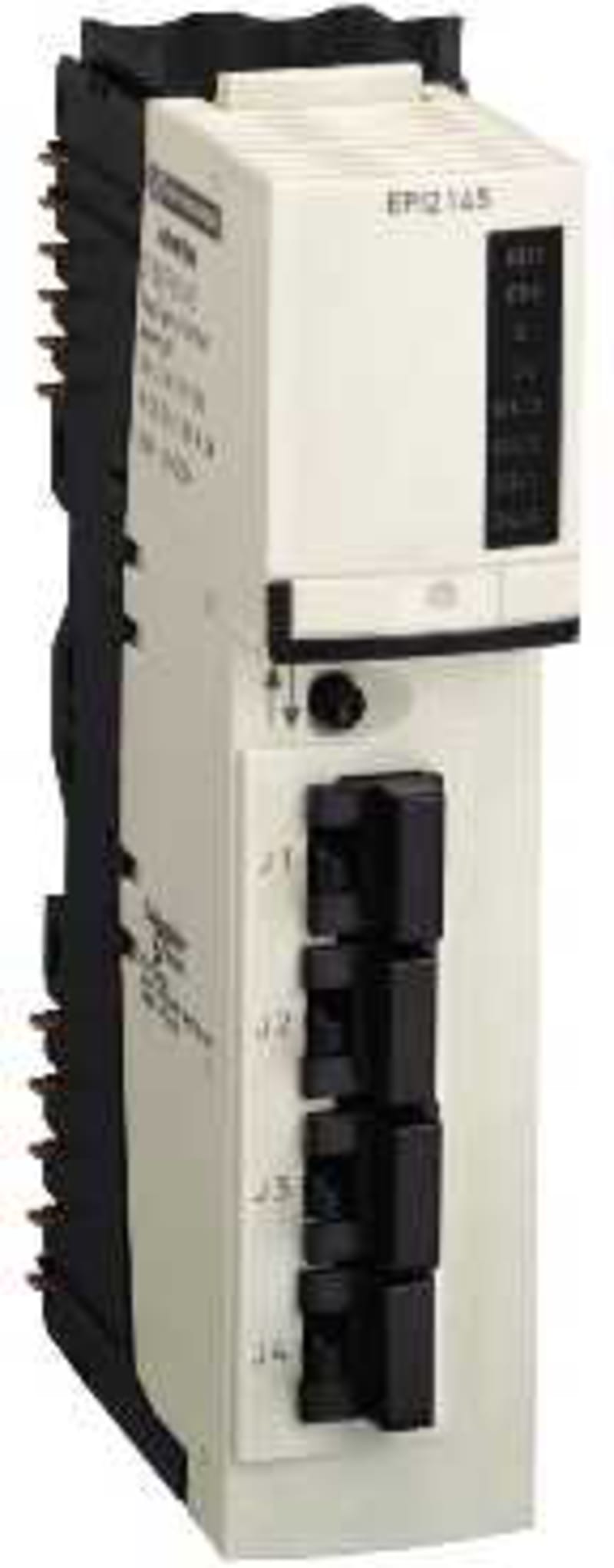

Schneider Electric parallel interface kit STB - 12 I CH - 8 O CH STBEPI2145K

Schneider Electric STBEPI2145K STB kit Tesys U motor starter, 12 in/8 out.

Manufacturer part number (MPN)

STBEPI2145K

EAN / GTIN

3595863933130

Sales unit

pcs

Package quantity

10 pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

Parallel interface kit

Product specific application

TeSys Quickfit; TeSys U

Kit composition

Terminal spring clamp connector; STBXBA3000 base; Terminal screw type connector; STBEPI2145 module

Number of input channels

12

input voltage

24 V

Input voltage type

DC

Input voltage limits

15...30 V at state 1; -3...5 V at state 0

Current state 0 guaranteed

<= 0.5 mA

Current state 1 guaranteed

>= 2 mA

Number of output channels

8

output voltage

24 V

Output voltage type

DC

Protection type

Power protection integrated fuse on PDM time lag 10 A; Overload protection; Short-circuit protection; Input protection resistor-limited

Cold swapping

Yes

hot swapping

Yes for standard NIMs

fallback

State 0 basic NIMs; User configurable standard NIMs

Electrical connection

4 RJ45 connectors

[Us] rated supply voltage

24 V DC

Supply

Power distribution module

Product compatibility

Power distribution module STBPDT3100/3105; Mounting base STBXBA3000

Current consumption

<= 100 mA at 24 V DC for sensor bus; <= 220 mA at 24 V DC for actuator bus for 150 ms; 100 mA at 5 V DC for logic bus; 50 mA at 24 V DC for actuator bus (with all 8 outputs at state 0); 80 mA at 24 V DC for actuator bus per output at state 1

Marking

CE

Overvoltage category

II

Status LED

1 LED (green) module status (RDY); 1 LED (red) module error (ERR); 2 LEDs (green) switch position (S1 and S2); 4 LEDs (green) output status

Depth

170 mm

Height

28.1 mm

Width

128.3 mm

Product weight

0.165 kg

Product certifications

FM Class 1 Division 2; UL; CSA

Pollution degree

2 conforming to IEC 60664-1

Operating altitude

<= 2000 m

IP degree of protection

IP20 conforming to IEC 61131-2 class 1

Ambient air temperature for operation

-25…70 °C (without derating)

Ambient air temperature for storage

-40…85 °C

Relative humidity

95 % at 60 °C without condensation

Vibration resistance

3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail; 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail; +/-0.35 mm at 10…58 Hz

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

20

Number of Units in Package 3

320

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital inputs

12

Number of digital outputs

8

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

2 mA

Permitted voltage at input

-3–30 V

Type of voltage (input voltage)

DC

Output current

0.8 A

Permitted voltage at output

24 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

Yes

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

Yes

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Time delay at signal change

2 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8536.41
