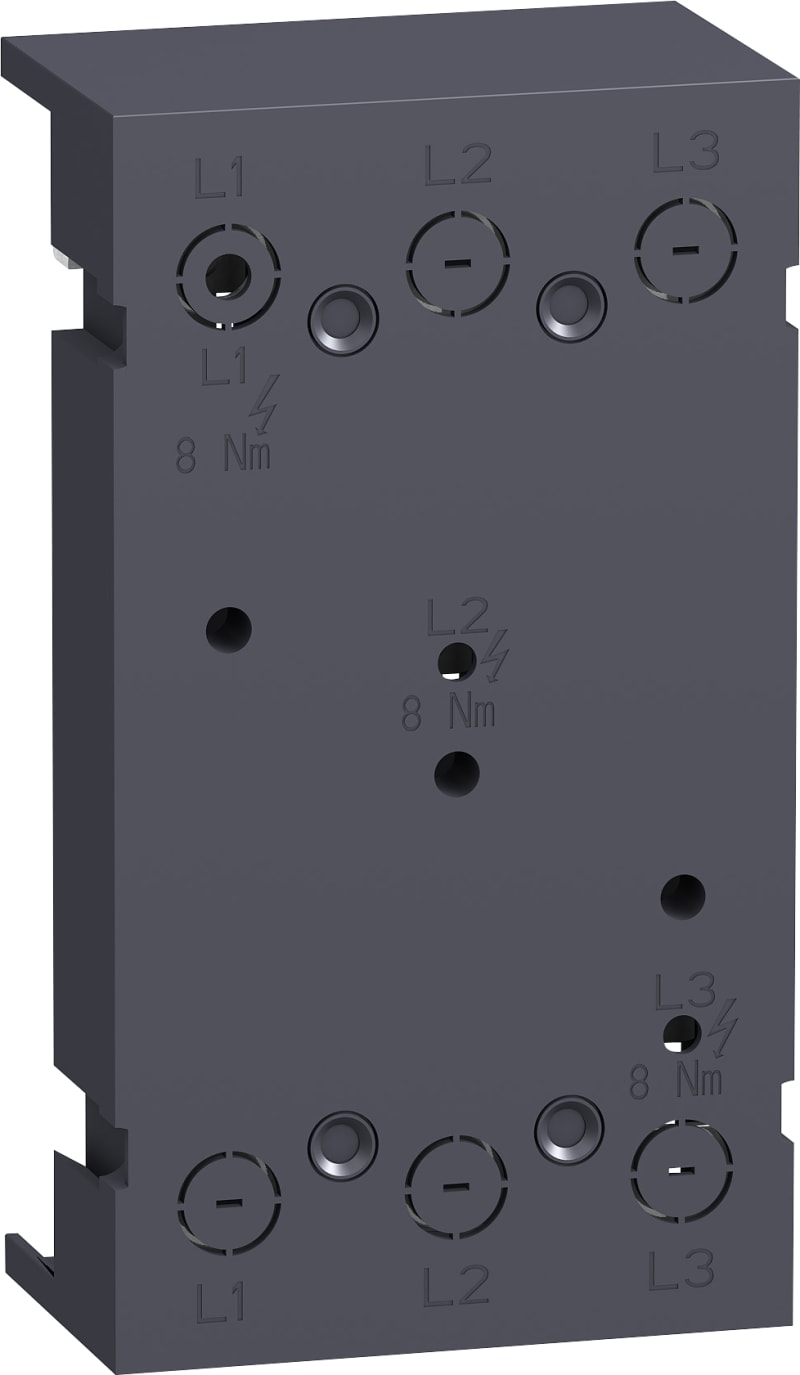

Rail adapter NSX400-630 3P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV432623 Rail adapter NSX400-630 3P.
Technical Specifications
- Manufacturer part number (MPN)
- LV432623
- EAN / GTIN
- 3606480022487
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Number of poles
- 3P
- Range
- Linergy
- Product name
- BZ
- Device short name
- LA9Z
- Product or component type
- Mounting plate
- Number of ways
- 1 way
- Range compatibility
- PrismaSeT G; PrismaSeT P; PrismaSeT POLAR WHITE; PanelSeT; ComPact
- Product compatibility
- NSX400...630; PowerPact NL
- Poles description
- 3P
- Permissible current
- 200 A - busbar cross section: 12 x 5 mm; 250 A - busbar cross section: 15 x 5 mm; 320 A - busbar cross section: 20 x 5 mm; 400 A - busbar cross section: 25 x 5 mm; 450 A - busbar cross section: 30 x 5 mm; 360 A - busbar cross section: 12 x 10 mm; 520 A - busbar cross section: 20 x 10 mm; 630 A - busbar cross section: 30 x 10 mm
- [Ui] rated insulation voltage
- 690 V
- Busbar pitch
- 60 mm
- Width
- 139 mm
- Height
- 270 mm
- Depth
- 63 mm
- Colour
- Anthracite grey
- IP degree of protection
- IP20 conforming to IEC 60529
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting rail armament
- None
- Rated current In
- 630 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 139 mm
- Busbar distance
- 60 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480022487
- SAP 1000419948
- Code 8983786
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Heavy load cross rails, PanelSeT SFN, PanelSet SF, W400MM, set of 2 NSYHLCR40
Schneider Electric
Schneider Electric Straight length, Canalis KBB, 40 A, 1 circuit 3L+N+PE, 3 tap-off units, 3 m, white KBB40ED4303W
Schneider Electric
Konnektorsett FOR M2X1 - PSU
TMAT2PSET
Schneider Electric
Floor-standing cabinet SFN m/m.pl 1200X800X400 (NSYSFN12840P)
Schneider Electric
Schneider Electric 4 safety relay outputs expansion module with spring term XPSMCMER0004G
Schneider Electric
Schneider Electric parallel interface kit STB - 12 I CH - 8 O CH STBEPI2145K
Schneider Electric

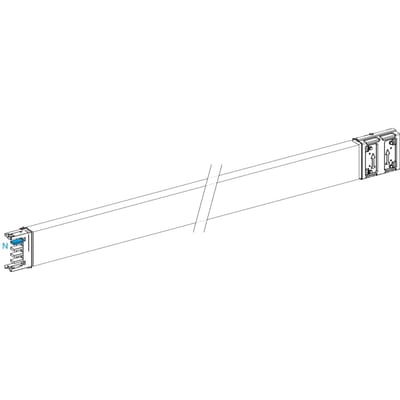

Rail 400A 3M No Outlet
