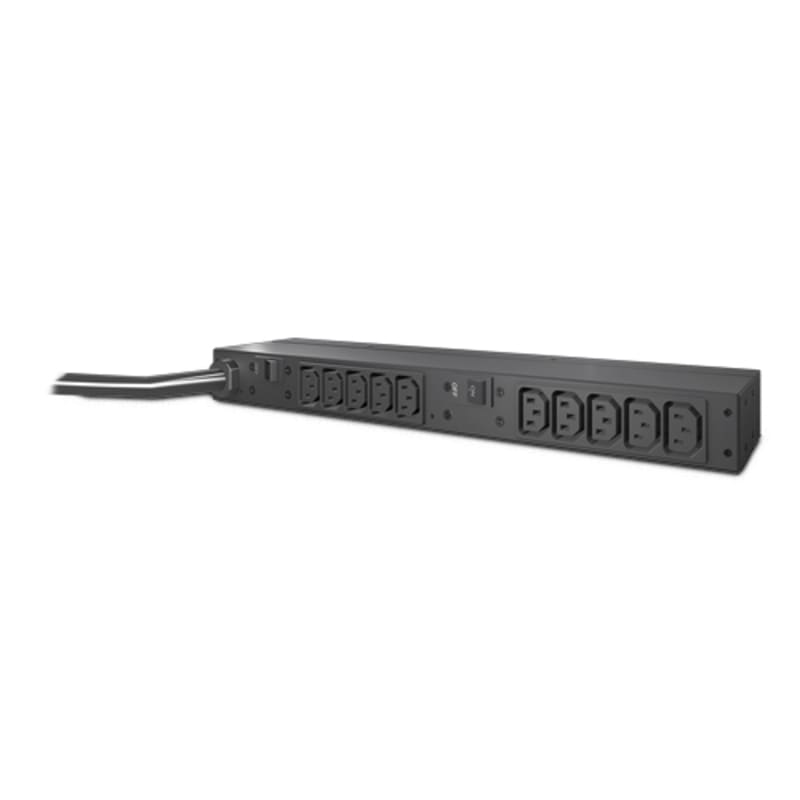

Schneider Electric Rack PDU, Basic, 1U, 30A, 208V, (10) C13 AP9571A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP9571A APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- AP9571A
- EAN / GTIN
- 0731304272755
- Sales unit
- pcs
- Voltage
- 208 V
- Rack units
- 1 U
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 3.65 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 44 mm
- Width
- 445 mm
- Output Voltage
- 208 V
- Depth
- 77 mm
- Product weight
- 2.55 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- NEMA L6-30P
- mounting mode
- Rack-mounted
- Mounting position
- Horizontal
- [In] rated current
- 24 A
- permissible voltage
- 200…240 V
- Max line current
- 30 A
- Input current limits
- 30 A
- Load capacity
- 4992 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 10 IEC 60320 C13
- Product certifications
- cUL listed; PSE; UL listed
- Standards
- UL 60950
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 30 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 3.6 m
- Number of C13 socket outlets
- 10
- Number of height units
- 1
- Length
- 77 mm
- Supply voltage
- 208 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304272755
- SAP 1200723105
- Code 83853036
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Cable duct - 35 x 30 mm - without cover - blue AK2GA33
Schneider Electric
Warning Lamp with Buzzer AC Orange
XVR3M05S
Schneider Electric
M340 USB Cable, 1.8M
BMXXCAUSBH018
Schneider Electric
Schneider Electric Network Management Card 3 (NMC3) with Environmental Monitoring, secure remote UPS monitoring and management AP9641
Schneider Electric
Schneider Electric Socket, Mureva PK, panel-mounted, angled, 32A, 2P+E, 220V, IP44 PKF32F423
Schneider Electric
Luminaire green 24V Led BA9S
9001KP35LGG31
Schneider Electric
Schneider Electric Easy UPS 3S 30 kVA 400V 3:1 UPS, 2 internal 7AH modular battery strings, expandable to 4 E3SUPS30K3IB1
Schneider Electric

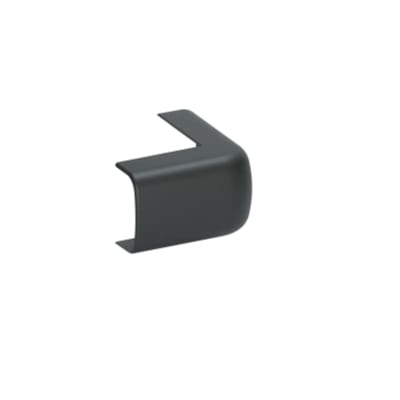

OL MINI 1220 External corner Black
