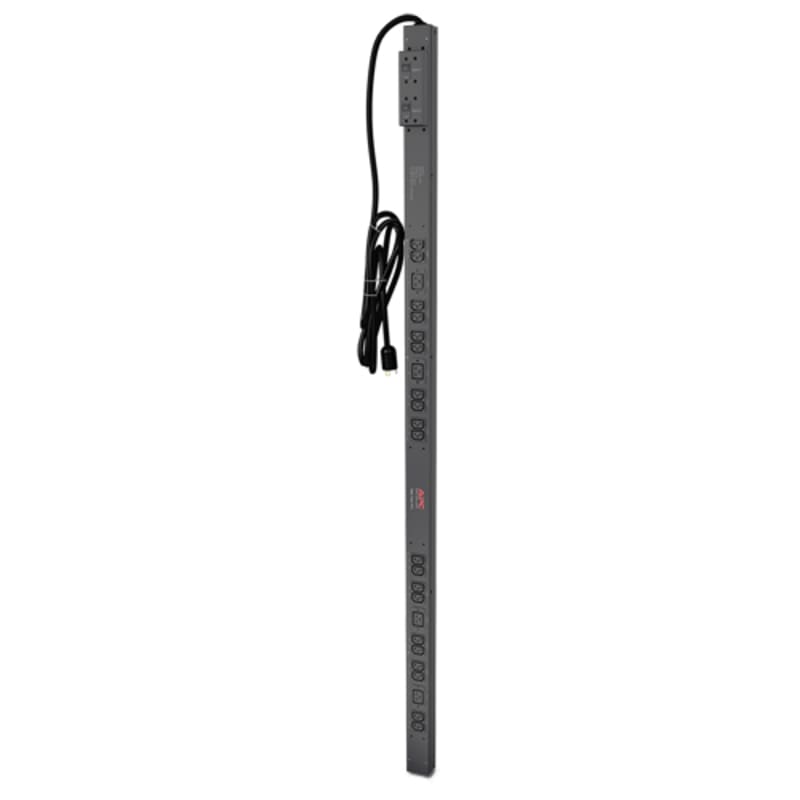

Schneider Electric Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19 AP7541
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP7541 APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- AP7541
- EAN / GTIN
- 0731304225560
- Sales unit
- pcs
- Presentation
- APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 3 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets; Toolless mounting kit
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 1619 mm
- Width
- 56 mm
- Output Voltage
- 200 V; 208 V
- Depth
- 44 mm
- Product weight
- 5.57 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- NEMA L6-30P
- mounting mode
- Rack-mounted
- Rack units
- 0U
- USB compatible
- No
- Mounting position
- Vertical
- [In] rated current
- 24 A
- Input current limits
- 30 A
- Load capacity
- 4992 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 20 IEC 60320 C13 ; 4 IEC 60320 C19
- Product certifications
- cUL listed; METI Denan; PSE; UL listed
- Standards
- CSA C22.2 No. 60950-1-03; UL 60950-1
- Ambient air temperature for operation
- 0…45 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 212.1 cm
- Package 1 Width
- 12.7 cm
- Package 1 Length
- 15.2 cm
- Package 1 Weight
- 6.48 kg
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 30 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Cable length
- 3 m
- Number of C13 socket outlets
- 20
- Number of C19 socket outlets
- 4
- Length
- 44 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304225560
- SAP 1200723104
- Code 83853042
Product Documentation
More from Schneider Electric
Schneider Electric

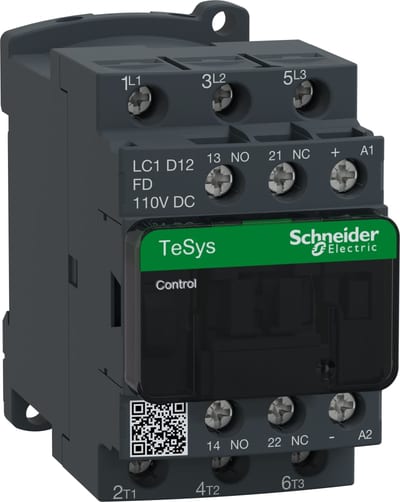

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 110V DC coil, screw clamp terminals LC1D12FD
Schneider Electric

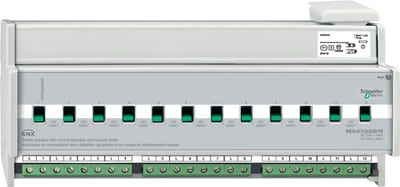

Schneider Electric KNX Switch Actuator REG-K/12x230/16 with Manual Mode and Current Detection MTN648495
Schneider Electric
Schneider Electric APC Smart-UPS RT192V RM Battery Pack 2 Rows SURT192RMXLBP2
Schneider Electric

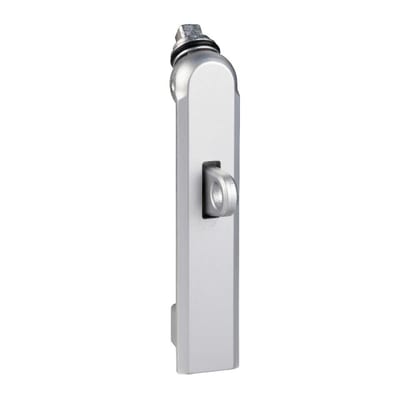

Schneider Electric PrismaSeT P/G Padlockable Handle Insert LVS07938
Schneider Electric

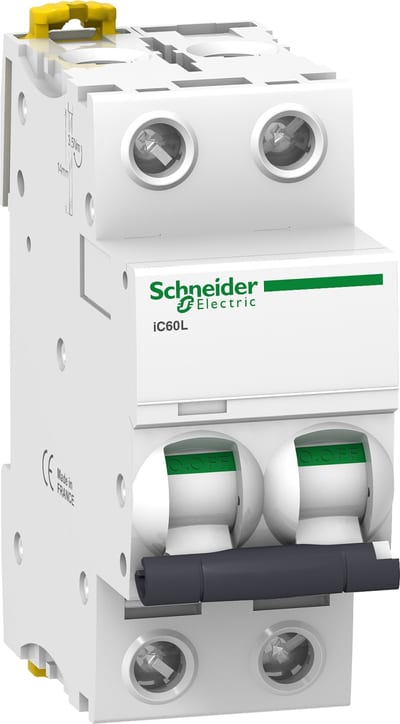

Schneider Electric A9F94201 ACTI9 IC60L Miniature Circuit Breaker 2P 1 A, Curve C
Schneider Electric

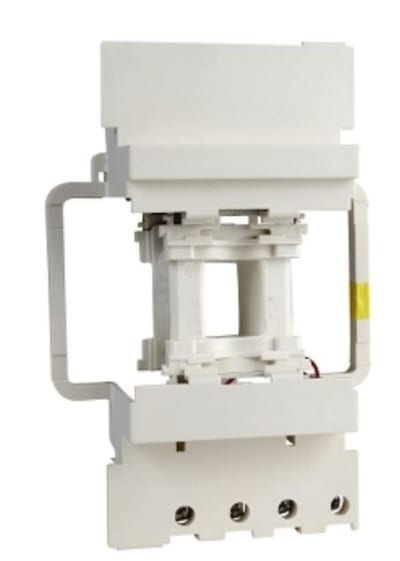

Coil 220V 50/60Hz (LX1D8M7)
Schneider Electric
Illuminated push-button white LED 24 V 1 C/O
XB6EDW1B1P
Schneider Electric

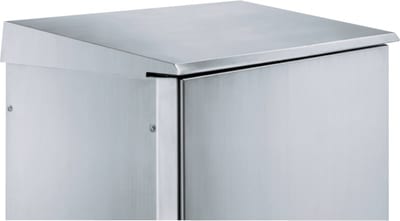

SFX/SMX Ceiling 304L 600X400
