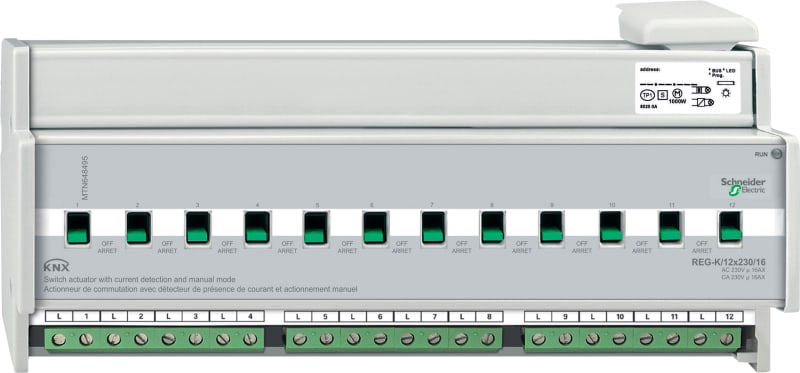

Schneider Electric KNX Switch Actuator REG-K/12x230/16 with Manual Mode and Current Detection MTN648495

Schneider Electric MTN648495 is a 12-channel KNX switch actuator, 16 A per channel, in a 12-module DIN-rail housing for cabinet mounting. The device switches loads at 100-240 V AC, 50/60 Hz, supports connection of different phases across channels, and features manual override and integrated current detection for load-status feedback to the KNX bus. Typical loads include incandescent and halogen lamps, compensated fluorescent fixtures, capacitive loads and motors.

Manufacturer part number (MPN)

MTN648495

EAN / GTIN

3606485100081

Sales unit

pcs

Package quantity

6 pcs

Range of product

KNX

Product or component type

Switch actuator

Operating mode

Manual

Bus type

KNX

Modular device additional info

Connectable with different phases

Number of contacts

12

Switching current

16 A

Colour tint

Light grey

Power supply input current

16 mA

Function available

Current detection

Total number of 18 mm modules

12

Mounting support

DIN rail

Device mounting

DIN rail

[Ue] rated operational voltage

100...240 V

Network frequency

50...60 Hz

[In] rated current

0.1…16 A

Load type

Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: , 16 A, 200 µF, 100...240 V AC; Motor: <= 434 W, 100 V AC; Motor: <= 1000 W, 230 V AC; Motor: <= 1043 W, 240 V AC

Device presentation

Complete product

Main colour tint

Light grey

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.200 cm

Package 1 Width

13.400 cm

Package 1 Length

27.900 cm

Package 1 Weight

990.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

6

Package 2 Height

20.100 cm

Package 2 Width

30.400 cm

Package 2 Length

40.600 cm

Package 2 Weight

6.308 kg

Country of origin

LV

Warranty (in months)

18

Width in number of modular spacings

12

Max. switching power

3600 W

Output power

3600 W

Max. number of switching contacts

12

Max. switching current

16 A

Rated current

16 A

Degree of protection (IP)

IP20

HS Code

8537.10
