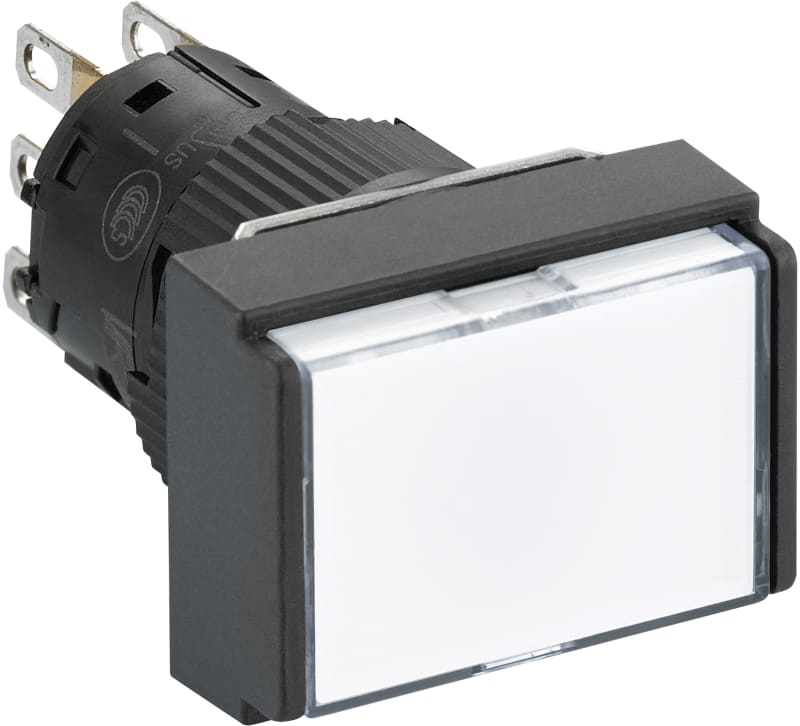

Illuminated push-button white LED 24 V 1 C/O

Schneider Electric XB6EDW1B1P illuminated monolithic push-button with white LED and 24 V DC polarised supply. Harmony XB6E series, 16 mm mounting diameter, spring-return operator with one change-over contact.

Manufacturer part number (MPN)

XB6EDW1B1P

EAN / GTIN

3389110630770

Sales unit

pcs

Package quantity

5 pcs

Voltage

24 V

Range of product

Harmony XB6E

Product or component type

Illuminated monolithic push-button

Device short name

XB6E

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

5

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

White flush

Contacts type and composition

1 C/O

Contact operation

Snap action

Connections - terminals

Insulated faston, connection size: 2.8 x 0.5 mm; Solder terminal, clamping capacity: <= 0.75 mm² 19 AWG; Fast connector socket

Contacts material

Gold-flashed silver

Light source

Integral LED

[Us] rated supply voltage

24 V DC polarised

Product weight

0.006 kg

Operating position

Any position

Marking

CE

Mechanical durability

1000000 cycles

Contact resistance

50 mOhm at 1/6 V

Short-circuit protection

2 A cartridge fuse type gG

[Ith] conventional free air thermal current

3 A (fast connector socket); 5 A

[Ie] rated operational current

1.5 A at 120 V, AC-12 conforming to IEC 60947-5-1; 1 A at 240 V, AC-12 conforming to IEC 60947-5-1; 1 A at 24 V, DC-12 conforming to IEC 60947-5-1; 0.7 A at 24 V, DC-13 conforming to IEC 60947-5-1; 0.2 A at 125 V, DC-12 conforming to IEC 60947-5-1; 0.15 A at 125 V, DC-13 conforming to IEC 60947-5-1

Electrical durability

100000 cycles, AC, 0.7 A at 220 V conforming to IEC 60947-5-1 appendix C

Signalling type

Steady

Current consumption

10 mA

Service life

30000 h

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-10…55 °C

IP degree of protection

IP65 conforming to IEC 60529

Standards

IEC 60947-1; CSA C22.2 No 14; UL 508; JIS C 852; JIS C 4520; IEC 60947-5-1

Product certifications

cURus; CCC

Vibration resistance

1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

50

Country of origin

CN

Warranty (in months)

18

Hole diameter

16.2 mm

Colour button

White

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Supply voltage lamp

24 V

Switching function latching

No

Number of contacts as normally open contact

1

HS Code

8536.50
