AS-In Module Tesys U

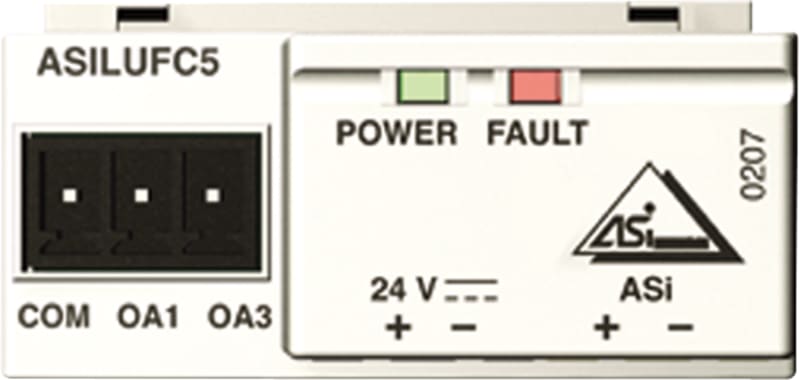

Schneider Electric ASILUFC5 Various kommunikasjonsutstyr/-units for Tesys model U.

Manufacturer part number (MPN)

ASILUFC5

EAN / GTIN

3389110365801

Sales unit

pcs

Package quantity

60 pcs

Range

TeSys

Device short name

ASILUF

Product or component type

Communication module

Product compatibility

LUCA; LUCL; LUCD; LUCM; LUCC; LUCB

Device application

Communication

Range compatibility

TeSys TeSys Ultra LUB non reversing power base; TeSys TeSys Ultra LU2B reversing power base

main function available

AS-Interface communication module

mounting mode

Plug-in

Mounting location

Front side

Bus type

AS-Interface

Communication port protocol

Profibus DP

Addressing

31 slaves

Current consumption

200 mA at 24 V output; 25 mA normal operation; 30 mA fault operation

Switching current capacity

500 mA at 24 V against short-circuits solid state

Local signalling

2 LEDs front panel

Connection pitch

3.81 mm output; 5.08 mm input

Connections - terminals

Input: screw clamp terminals 1 cable(s) 0.2…1.5 mm²flexible without cable end; Input: screw clamp terminals 1 cable(s) 0.2…1.5 mm²rigid without cable end; Input: screw clamp terminals 1 cable(s) 0.25…1.5 mm²flexible with cable end; Input: screw clamp terminals 2 cable(s) 0.2…1 mm²flexible without cable end; Input: screw clamp terminals 2 cable(s) 0.2…1 mm²rigid without cable end; Input: screw clamp terminals 2 cable(s) 0.25…1 mm²flexible with cable end; Input: screw clamp terminals 2 cable(s) 0.5…1 mm²flexible with cable end; Output: screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end; Output: screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end; Output: screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end; Output: screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end; Output: screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end; Output: screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end; Output: screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end; Output: screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end

Tightening torque

Input: 0.5…0.6 N.m3.5 mm; Output: 0.2…0.25 N.m2.5 mm

IP degree of protection

IP20 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.4 cm

Package 1 Width

4.9 cm

Package 1 Length

9.4 cm

Package 1 Weight

61.0 g

Unit Type of Package 2

S01

Number of Units in Package 2

20

Package 2 Height

15.0 cm

Package 2 Width

15.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

1.415 kg

Country of origin

FR

Warranty (in months)

18
