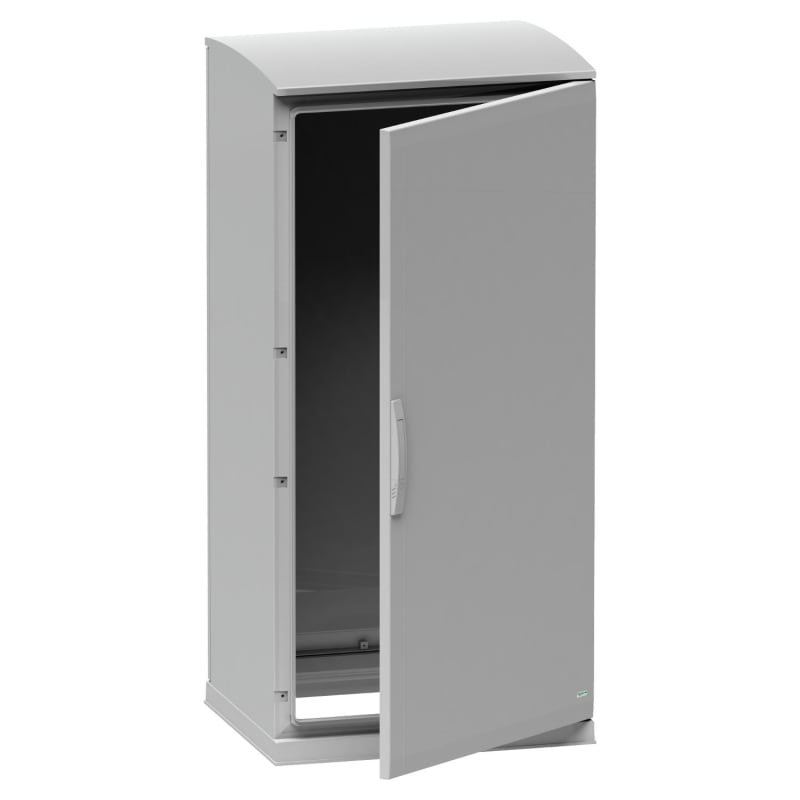

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500X750X420 IP44 NSYPLAZT1574G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLSA REGNT TO.SOK 7035 1500X750X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT1574G
- EAN / GTIN
- 3606480776182
- Sales unit
- pcs
- Package quantity
- 2 pcs
- IP rating
- IP44
- Dimensions
- 1500×750×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 1500 mm
- Nominal width
- 750 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Front; Top; Rear; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 1500 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1461 N
- Max. permitted load of the door(s) according to IEC 62208
- 324 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776182
- SAP 1000752588
- Code 8487537
Product Documentation
More from Schneider Electric
Schneider Electric
Selector switch with light 3POS.RET.H/v yellow
ZB4BK1583
Schneider Electric
Schneider Electric Daisy Chain DC bus connection - no connector VW3M7102R150
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 690V AC 50/60Hz coil, snap-in terminals LC1D12AY7
Schneider Electric
Schneider Electric Harmony XAC Tightening Wrench for Ø22 Pilot Devices ZA2BZ905
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2000X600X500
NSYSFN20650P
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, TMD trip unit 32A C10N3TM032
Schneider Electric
Schneider Electric Plain backplate, 36 modules 510 mm wide LVS03570
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 2A 3P - with compression lug GV4PE02N6
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPLAZT1574G?
- NSYPLAZT1574G can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPLAZT1574G.
- What is the HS code for NSYPLAZT1574G?
- The customs tariff (HS) code for NSYPLAZT1574G is 9403.70.
- Who manufactures NSYPLAZT1574G?
- NSYPLAZT1574G is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPLAZT1574G?
- Yes — the NSYPLAZT1574G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPLAZT1574G?
- The minimum order quantity is 1.
- Is NSYPLAZT1574G available?
- Yes — NSYPLAZT1574G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
