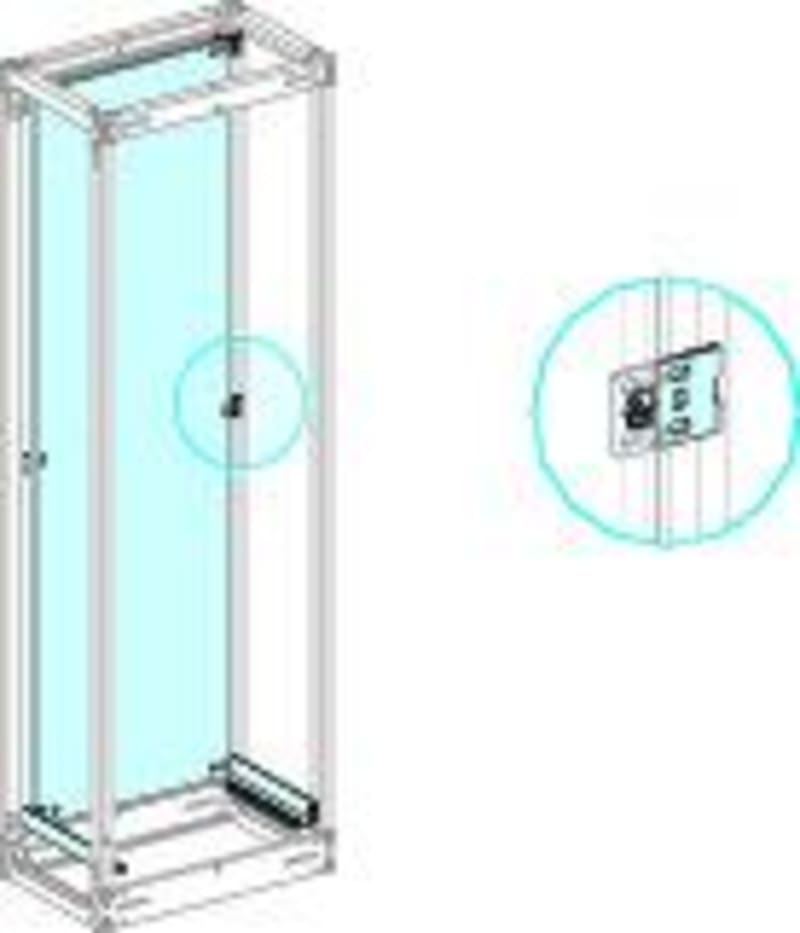

Schneider Electric Plain backplate, 36 modules 510 mm wide LVS03570
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03570 Mounting plate-full-36M-B510 PrismaSeT P - for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03570
- EAN / GTIN
- 3606481874894
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Back plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 + 150 mm depth 400 mm; Cubicle - width 650 mm depth 400 mm
- Mounting plate description
- Plain
- Number of vertical modules [50 mm]
- 36 module(s) in 650 mm Widecubicle; 36 module(s) in 650 + 150 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 524 mm
- Height
- 1794 mm
- Depth
- 35 mm
- Product weight
- 25.56 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle 36 37.5 mm; 650 + 150 mm 400 mm PrismaSeT P cubicle 36 12.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 52.500 cm
- Package 1 Length
- 180.000 cm
- Package 1 Weight
- 21.236 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 34
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 747.030 kg
- Country of origin
- SK
- Warranty (in months)
- 18
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874894
- SAP 1200546698
- Code 82880134
Product Documentation
